Operation CHARM
: Car repair manuals for everyone.
Hosted by
mcallihan.com
Home
>>
Chevy Truck
>>
2002
>>
K 2500 Truck 4WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Door Switch
>>
Diagrams
>>
LR - Crewcab
LR - Crewcab

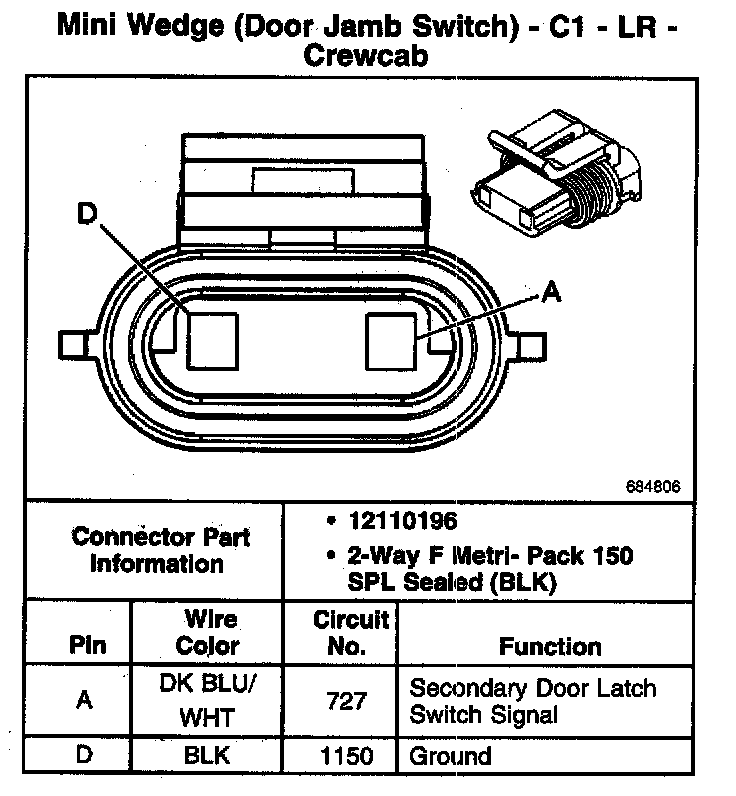

Mini Wedge (Door Jamb Switch) - C1 - LR - Crewcab:
