Home >> Chevy Truck >> 2002 >> K 2500 Suburban 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C303 - C399 >> C330

C330

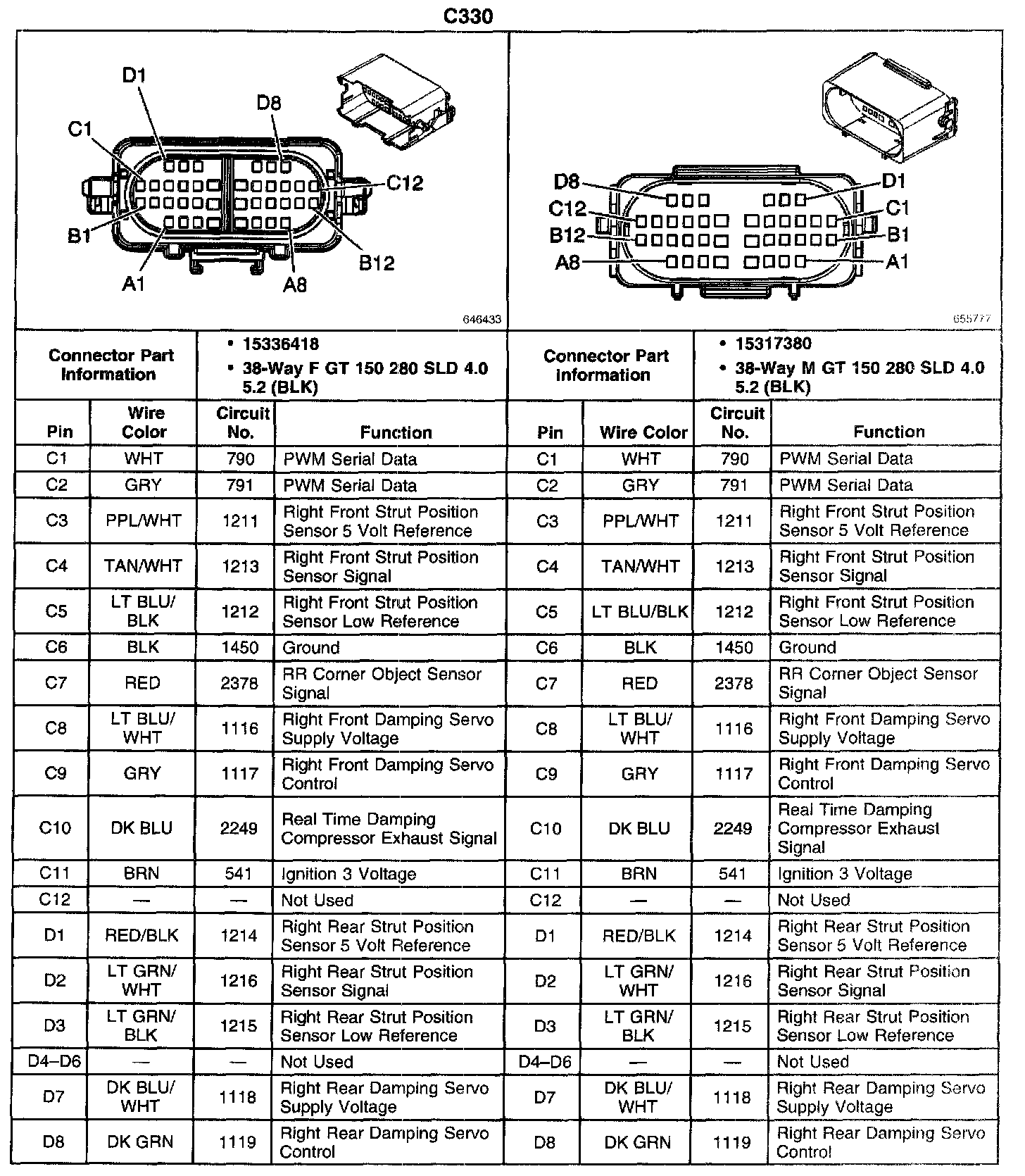

C330 Part 1:



C330 Part 2:
