Impact Sensor: Diagrams

Inflatable Restraint Front End Discriminating Sensor:

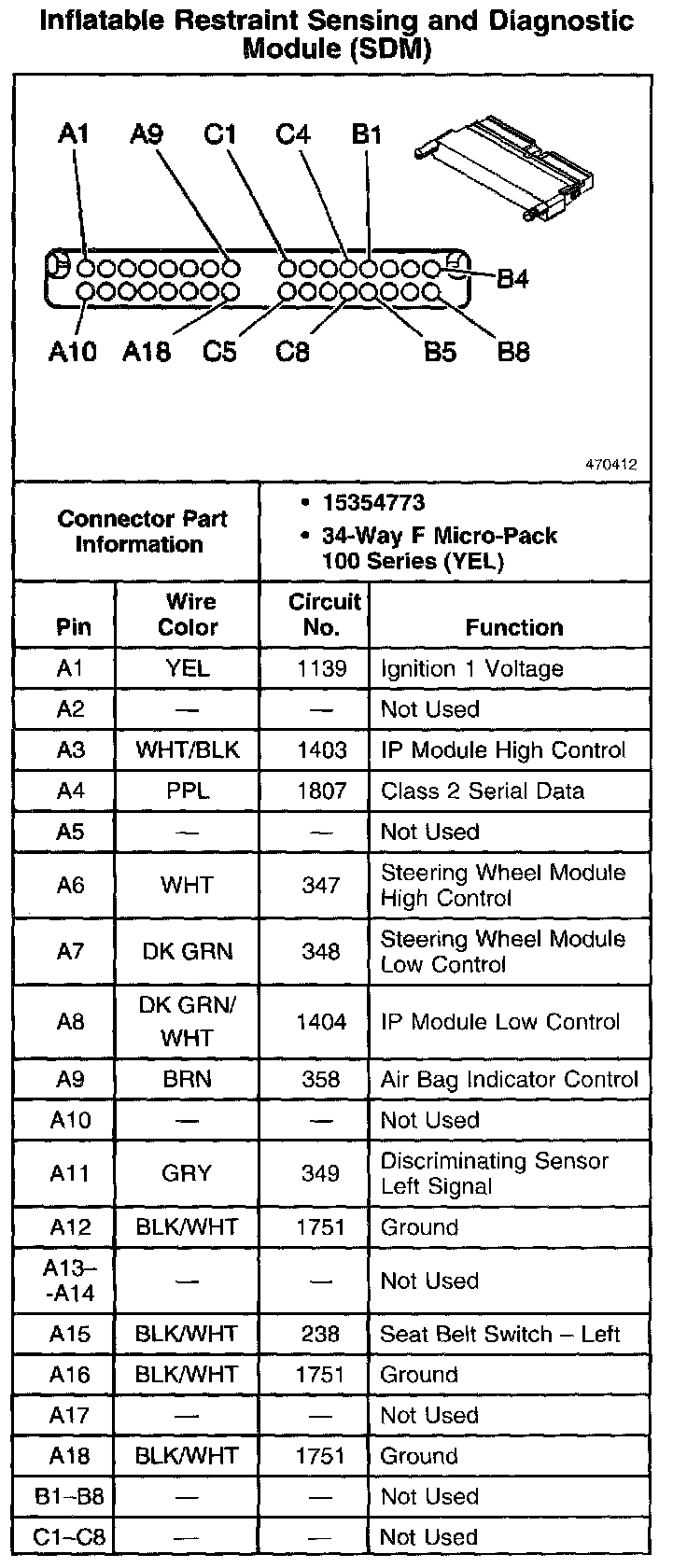

Inflatable Restraint Sensing And Diagnostic Module (SDM):
