Fuel Hose/Pipes Assembly Replacement

REMOVAL PROCEDURE




1. Remove the fuel tank.

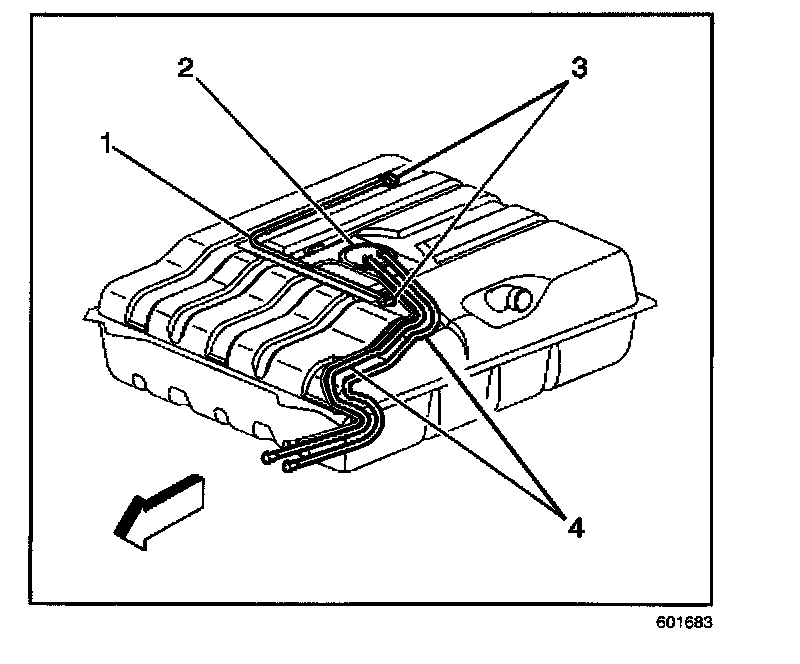

2. Remove the fuel feed and return pipes (4) from the fuel sender(2).

INSTALLATION PROCEDURE




1. Install the fuel feed and return pipes (4) to the fuel sender(2).
2. Install the fuel tank.
