Home >> Chevy Truck >> 2002 >> C 3500 Truck 2WD V8-6.6L DSL Turbo VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Glow Plug Controls >> Glow Plug Controls - Federal Emissions

Glow Plug Controls - Federal Emissions

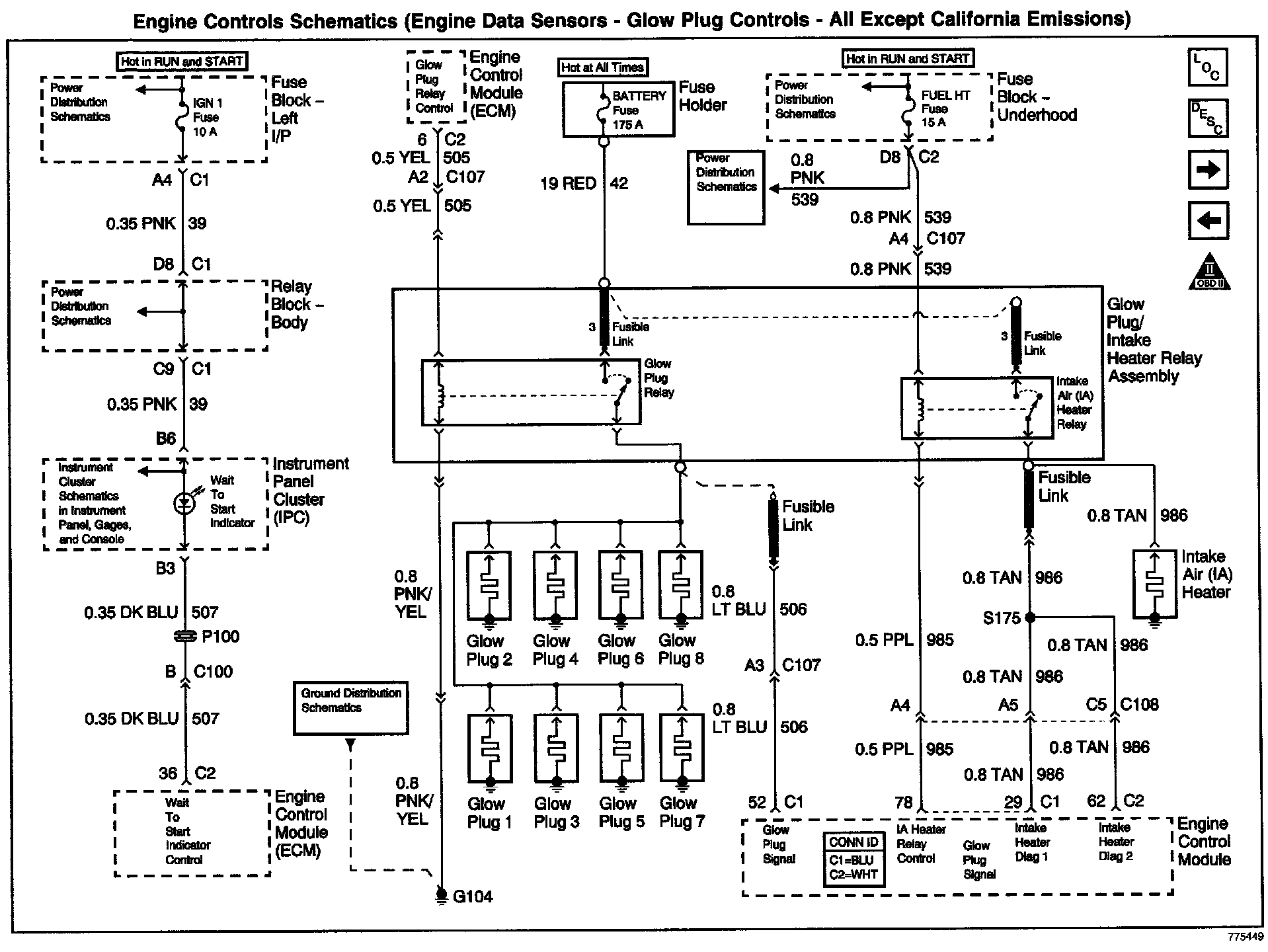

Engine Controls Schematics: Engine Data Sensors - Glow Plug Controls - All Except California Emissions:
