Home
>>
Chevy Truck
>>
2002
>>
C 3500 HD Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C200 - IP Harness Inline to Engine Harness
C200 - IP Harness Inline to Engine Harness

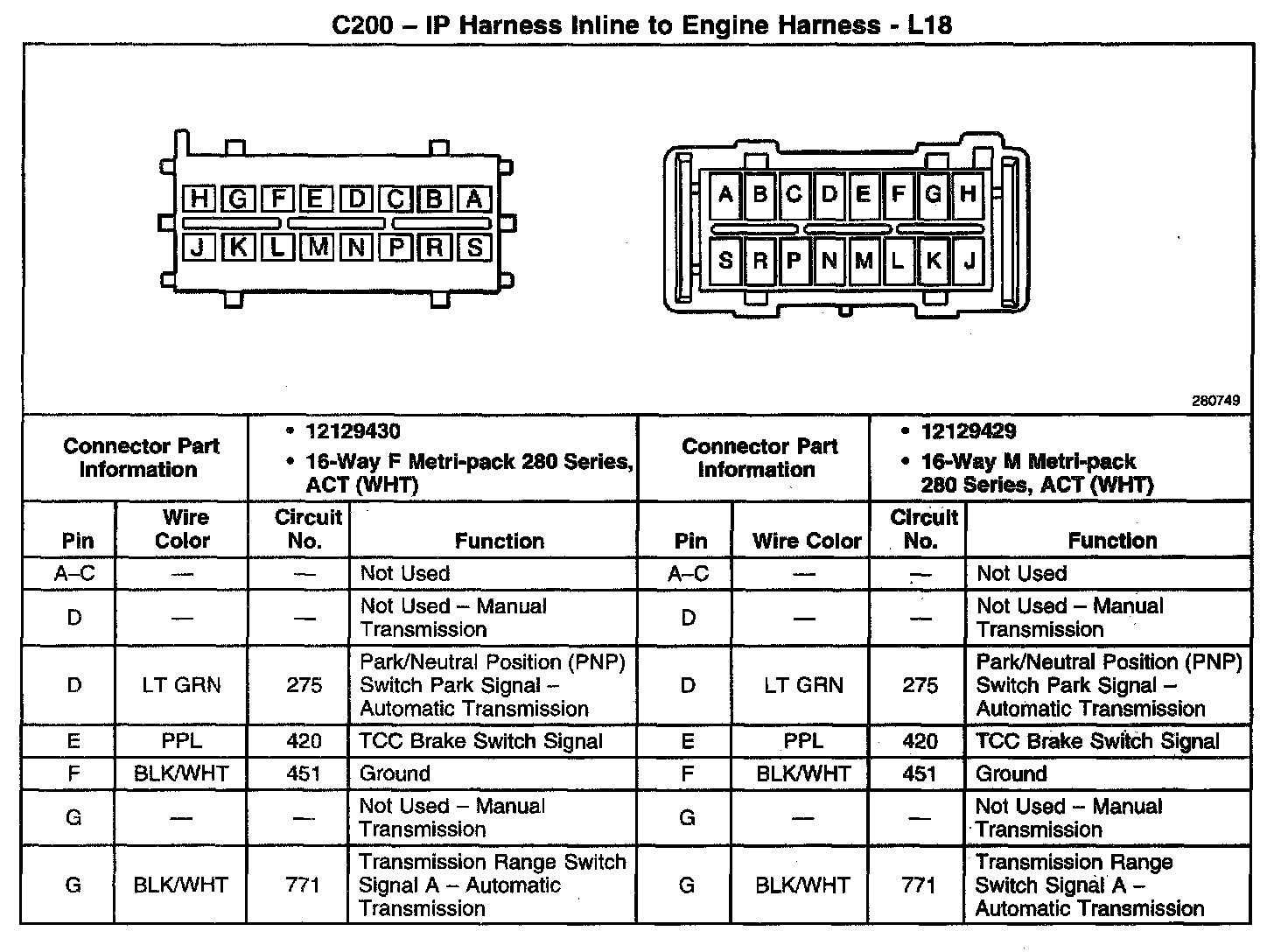

C200 - IP Harness Inline To Engine Harness - L18 Part 1:
C200 - IP Harness Inline To Engine Harness - L18 Part 2:
