Backup Lamps (Avalanche W/O Rear Bussing Block)

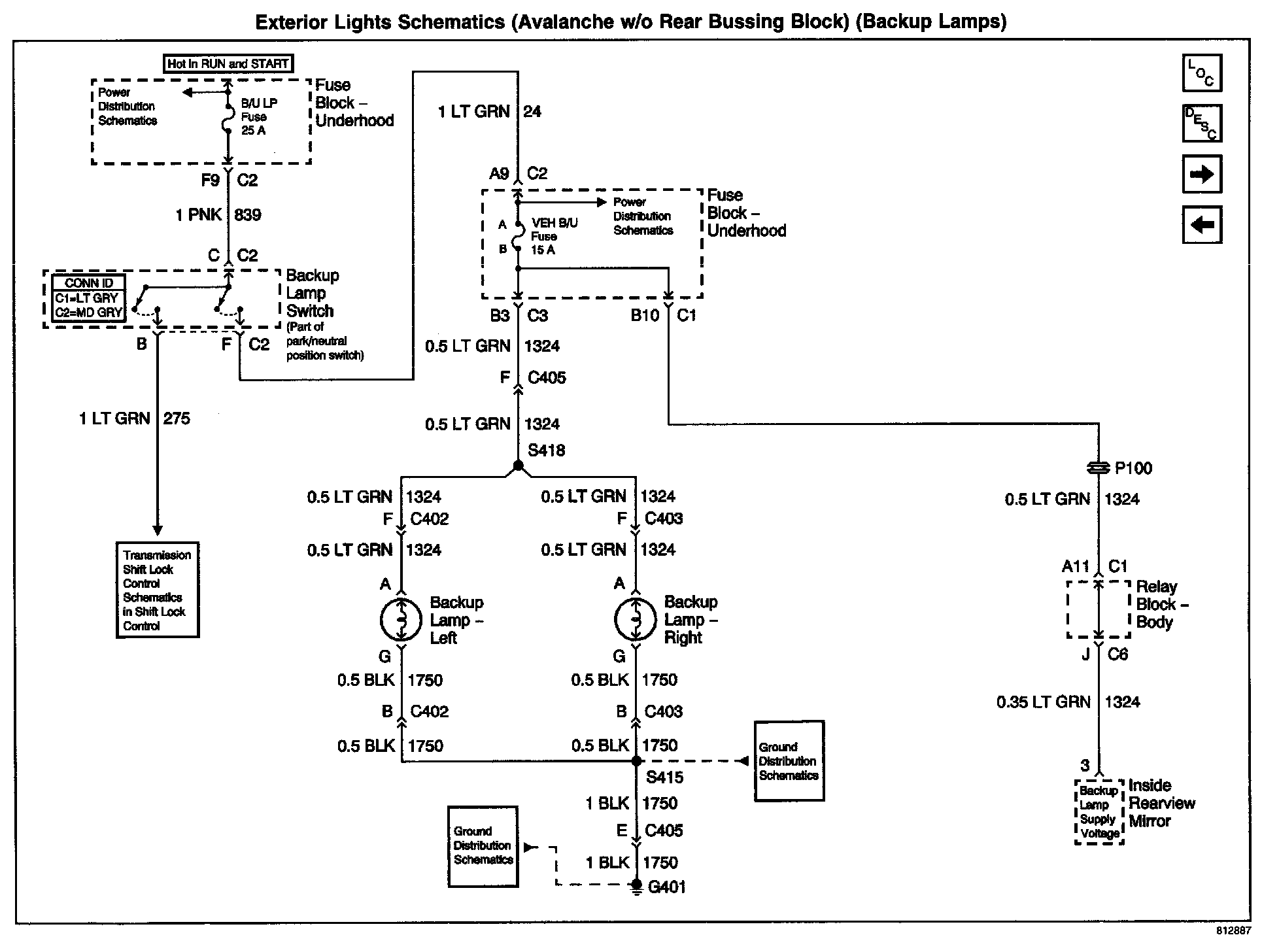

Exterior Lights Schematics (Avalanche W/O Rear Bussing Block): Backup Lamps:
