Headlamp
>>
Diagrams
>>
Connector Views
Connector Views
Headlamp - LH:
Headlamp - High Beam -left:
Headlamp - High Beam - Right:
Headlamp - Low Beam - Right:
Headlamp - Low Beam - Left:

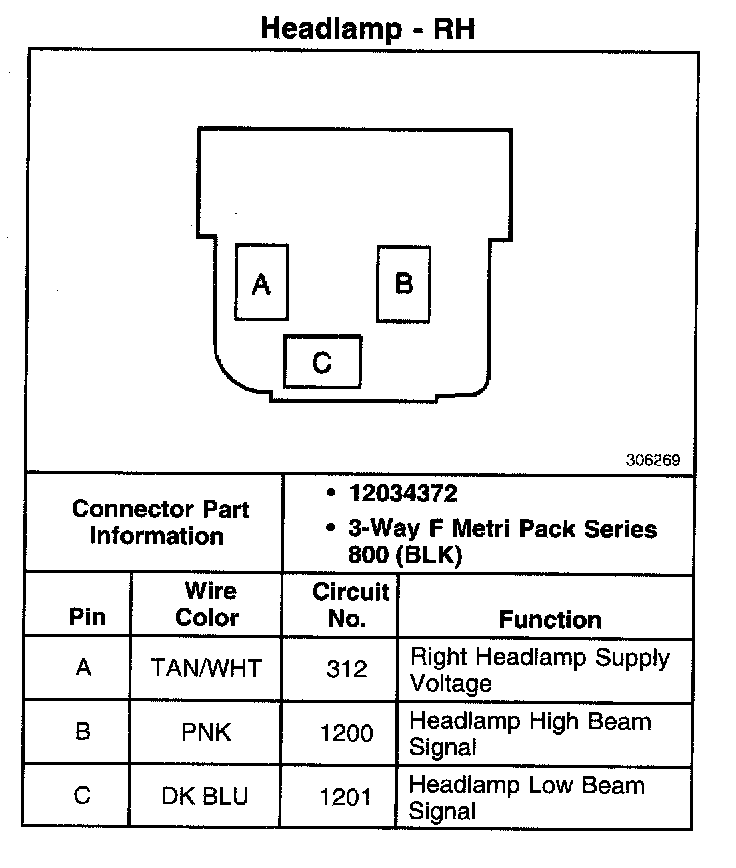

Headlamp -RH:
Headlamp And Panel Dimmer Switch:
