HVAC System - Manual
>>
Compressor Control Module, ECT, Evaporator Temp Sensor and PCM
Compressor Control Module, ECT, Evaporator Temp Sensor and PCM

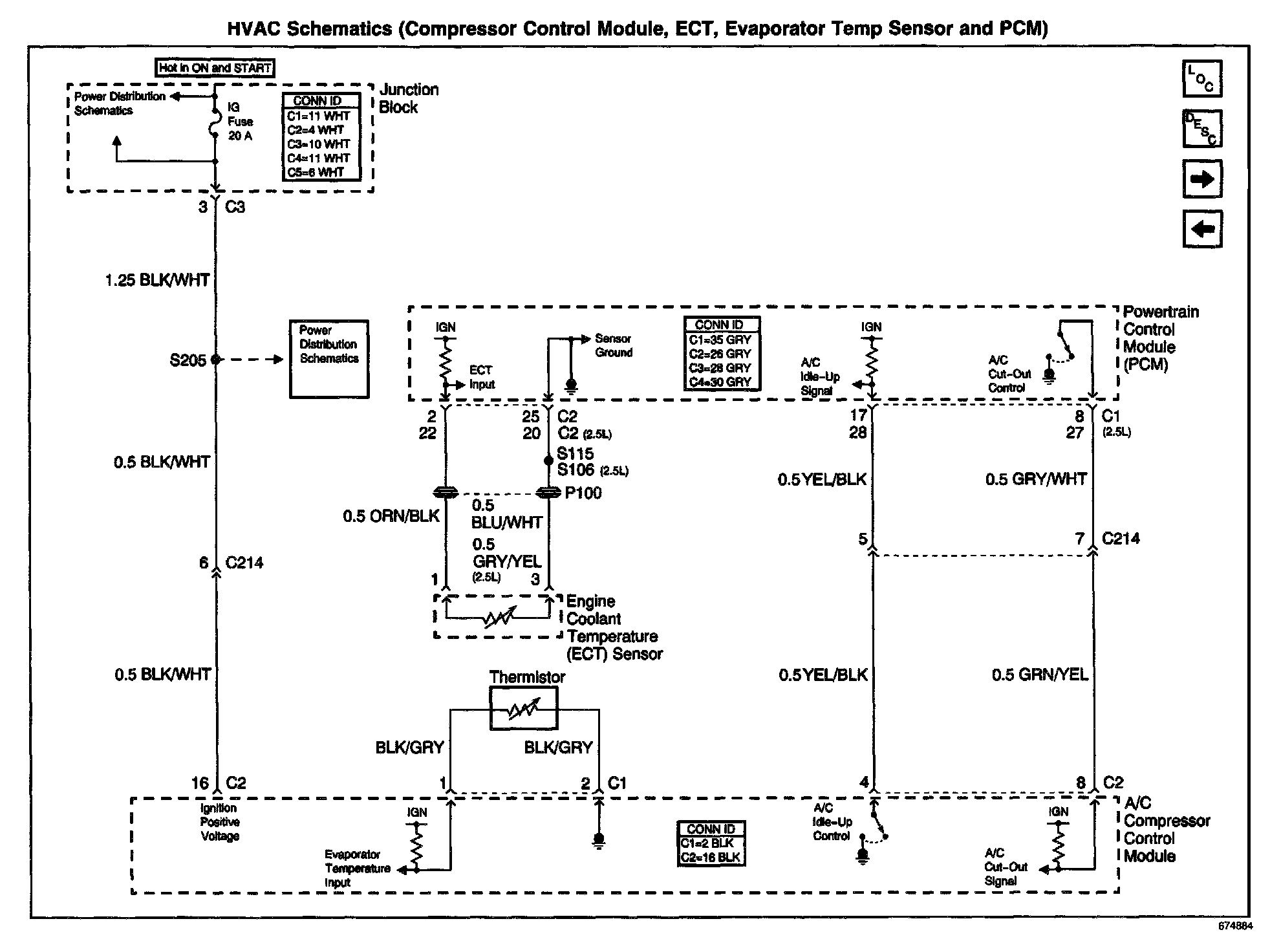

HVAC Schematics: Compressor Control Module, ECT, Evaporator Temp Sensor And PCM:
