HVAC System - Automatic
>>
Air Delivery Controls - Auxiliary
>>
Automatic Auxiliary Device Controls - W/O Sunroof
Automatic Auxiliary Device Controls - W/O Sunroof

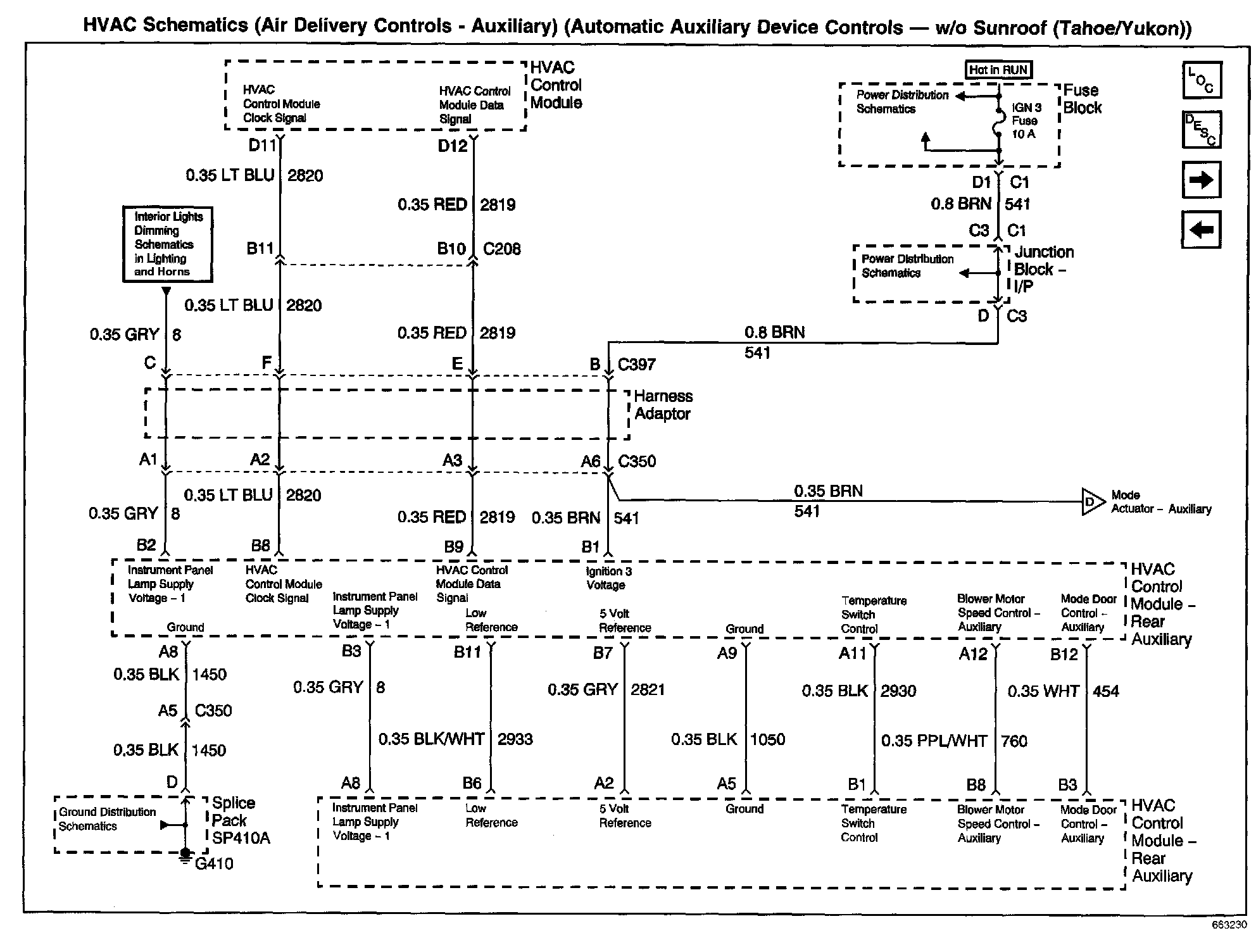

HVAC Schematics: Air Delivery Controls - Auxiliary (Automatic Auxiliary Device Controls - W/O Sunroof (Tahoe/Yukon)):
