Fuel Controls
>>
Fuel Pump Relay, Fuel Tank Pressure Sensor (FTP)
Fuel Pump Relay, Fuel Tank Pressure Sensor (FTP)

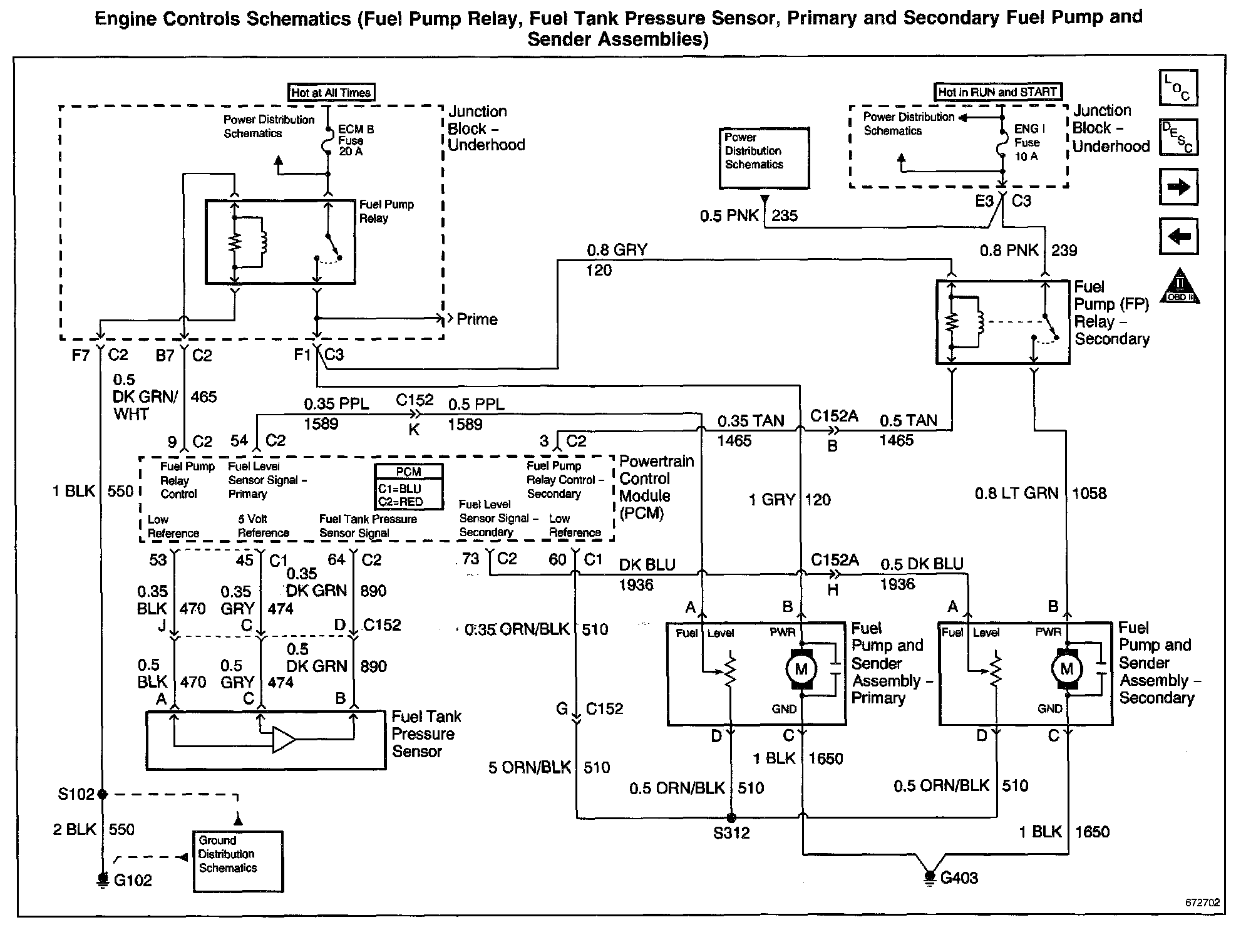

Engine Controls Schematics: Fuel Pump Relay, Fuel Tank Pressure Sensor, Primary And Secondary Fuel Pump And Sender Assemblies:
