Home
>>
Chevy Truck
>>
2001
>>
Express 1 Ton Van V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Auxiliary Heater and Air Conditioning Control Wiring
Auxiliary Heater and Air Conditioning Control Wiring

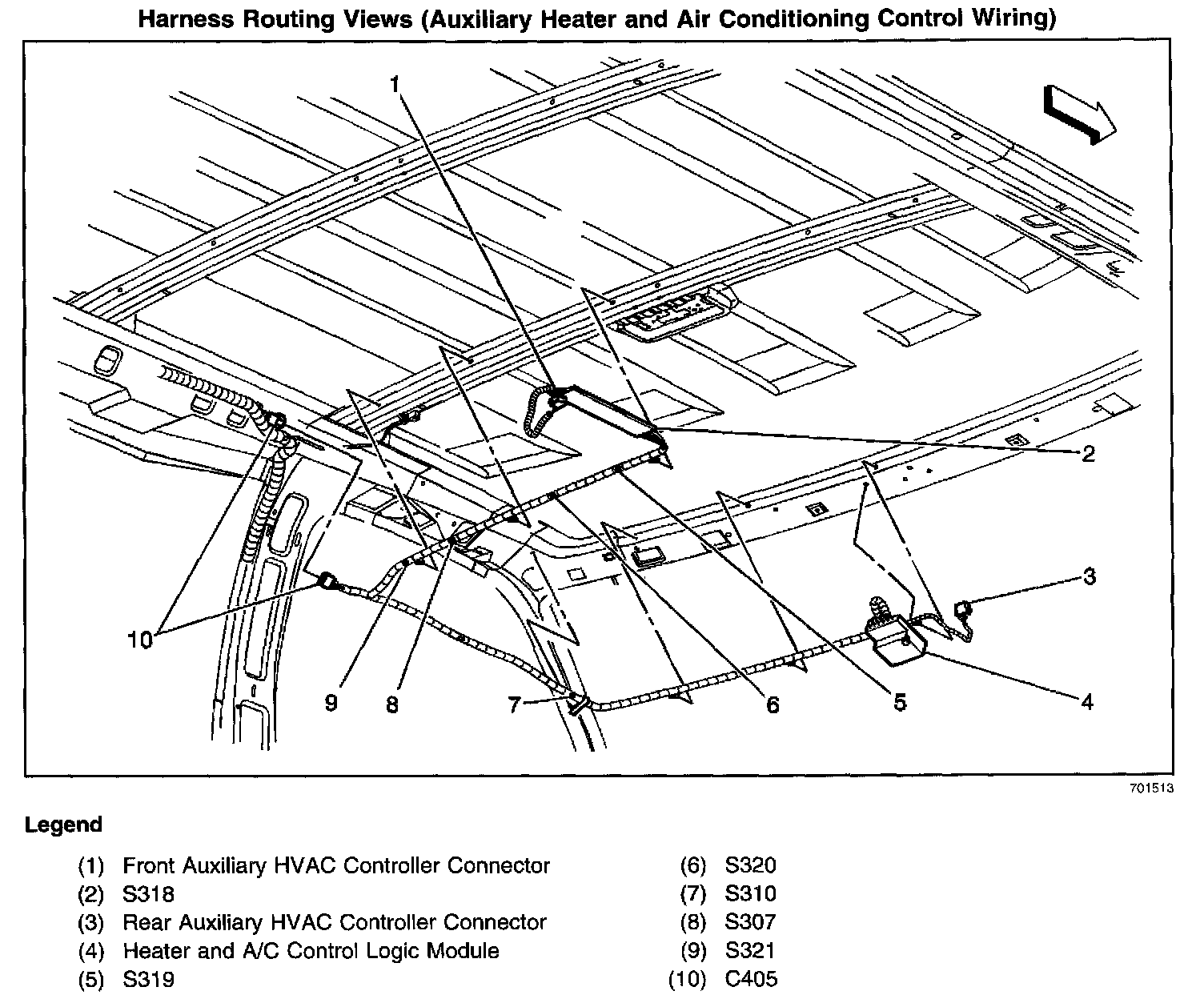

Harness Routing Views (Auxiliary Heater And Air Conditioning Control Wiring):
