Fluid Diagrams
Fluid Diagrams

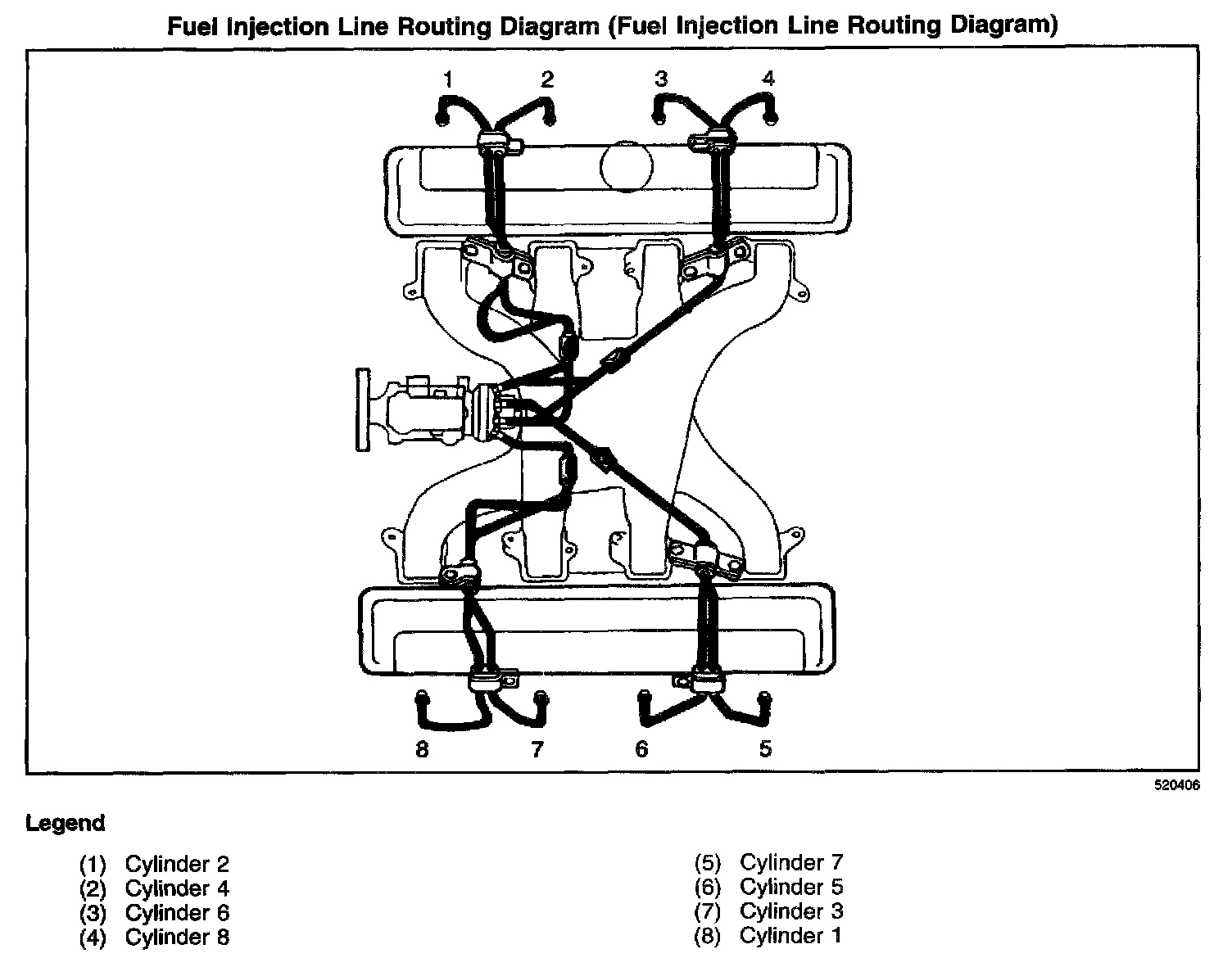

Fuel Injection Line Routing Diagram (Fuel Injection Line Routing Diagram):
