Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Fuel Delivery and Air Induction >> Pressure Pump Relay >> Diagrams >> C013 Lock-Off Relay

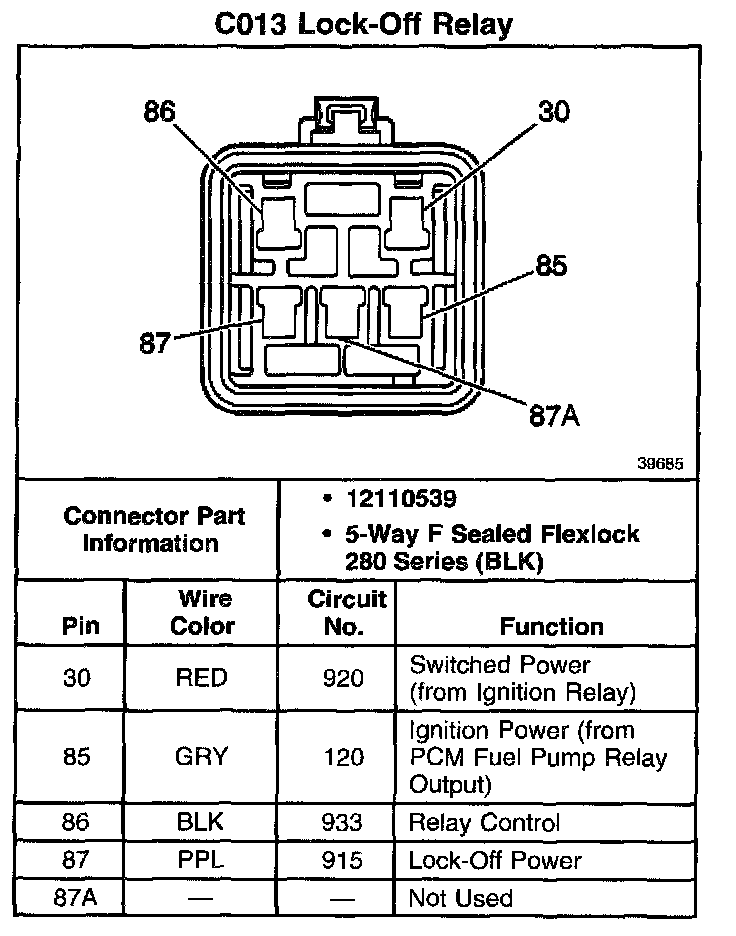

C013 Lock-Off Relay

C013 Lock-Off Relay - BI-Fuel/Alternative Fuels:
