Blower Motor Switch: Service and Repair

Blower Motor Switch Replacement

Removal Procedure

1. Remove the IP bezel assembly screws.
2. Remove the IP bezel assembly.
3. Remove the radio. Refer to Radio Replacement Service and Repair in Entertainment.

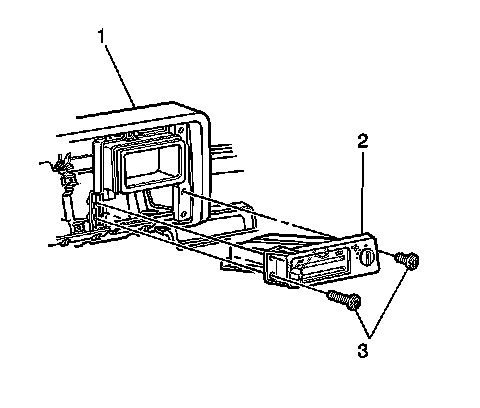

4. Remove the HVAC control assembly screws.
5. Remove the HVAC control assembly (2).




6. Disconnect the electrical connector (4) from the HVAC control assembly (1).




7. Remove the blower motor control knob (5) from the HVAC control assembly (1).
8. Remove the blower motor switch (2) from the HVAC control plate (3).

Installation Procedure




1. Install the blower motor switch (2) to the HVAC control plate (3).
2. Install the blower motor control knob (5) to the HVAC control assembly (1).




3. Connect the electrical connection (4) to the HVAC control assembly (1).




4. Install the HVAC control assembly (2).

Notice: Refer to Fastener Notice in Cautions and Notices.

5. Install the HVAC control assembly screws.

Tighten the screws to 2 Nm (18 lb in).

6. Install the IP bezel assembly.
7. Install the IP bezel assembly screws.

Tighten the screws to 2 Nm (18 lb in).
