Starting and Charging Schematics (L18)
Starting and Charging Schematics (L18)
Starting and Charging
Schematics (L18)

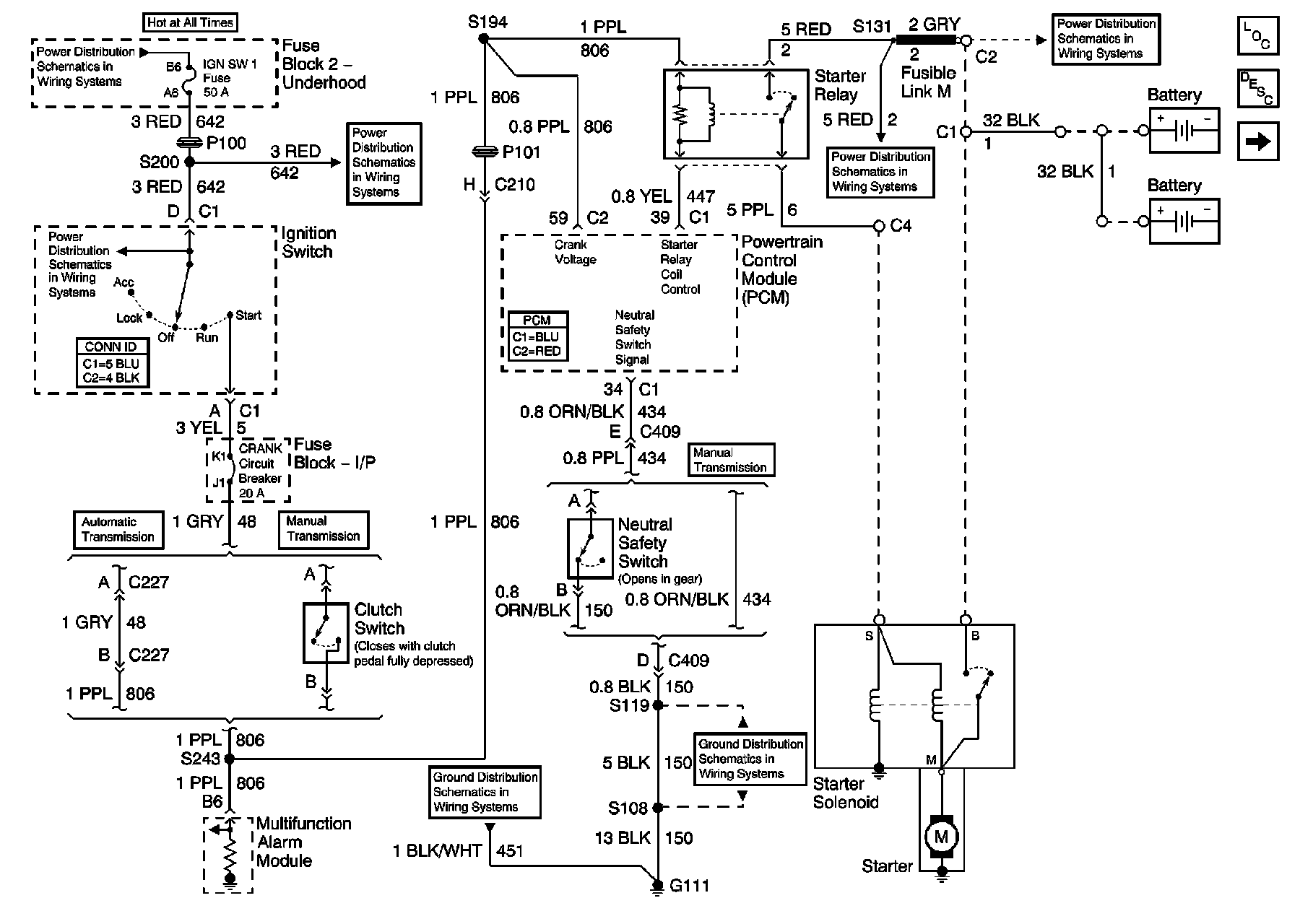

Starting Circuit
Charging Circuit
