Module Power, Grounding, And DLC; Lights And Horn Control
Module Power, Grounding, And DLC; Lights And Horn Control

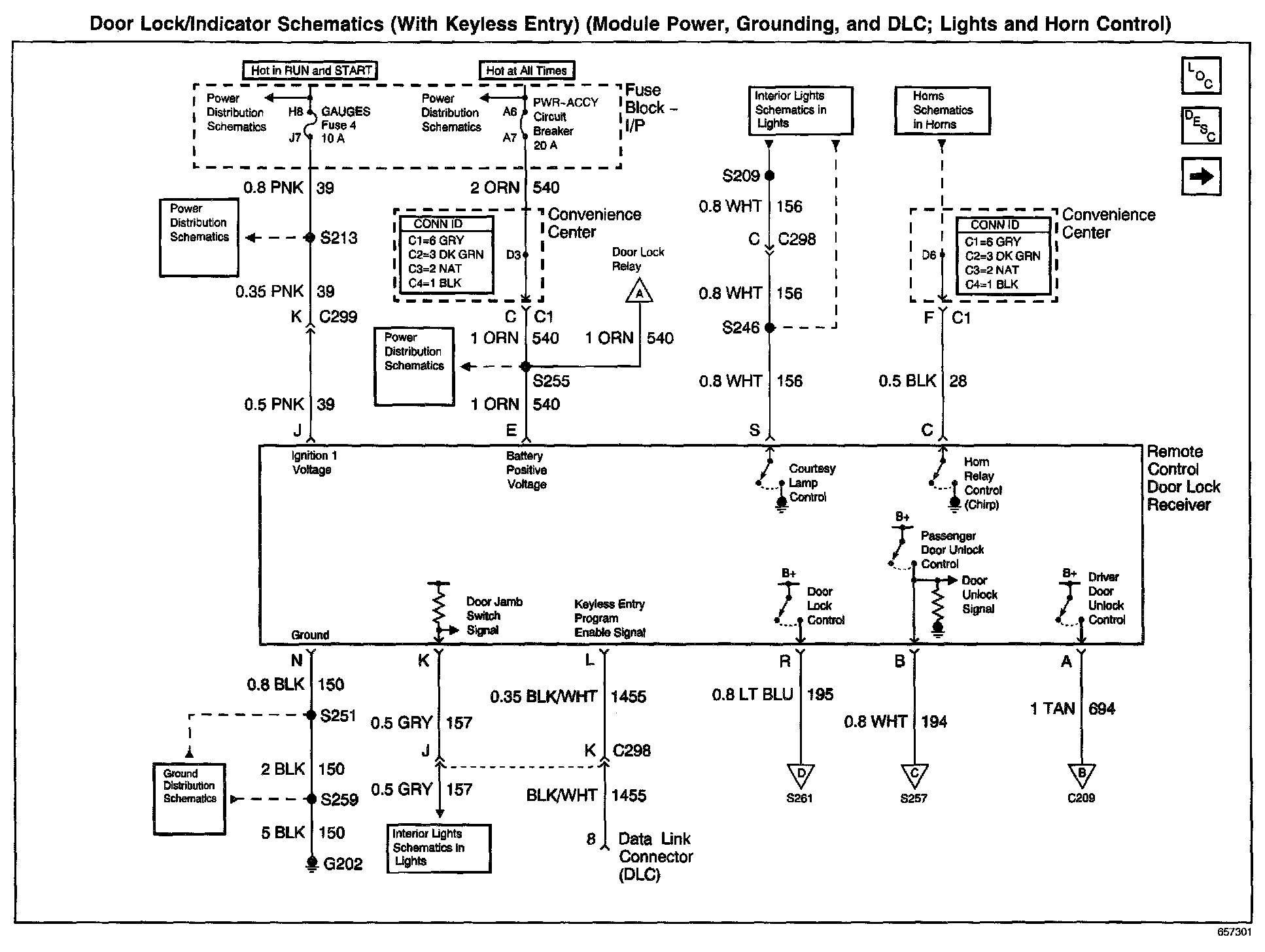

Door Lock/Indicator Schematics: With Keyless Entry (Module Power, Grounding, And DLC; Lights And Horn Control):
