C 2500 Suburban 2WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
System Diagram
>>

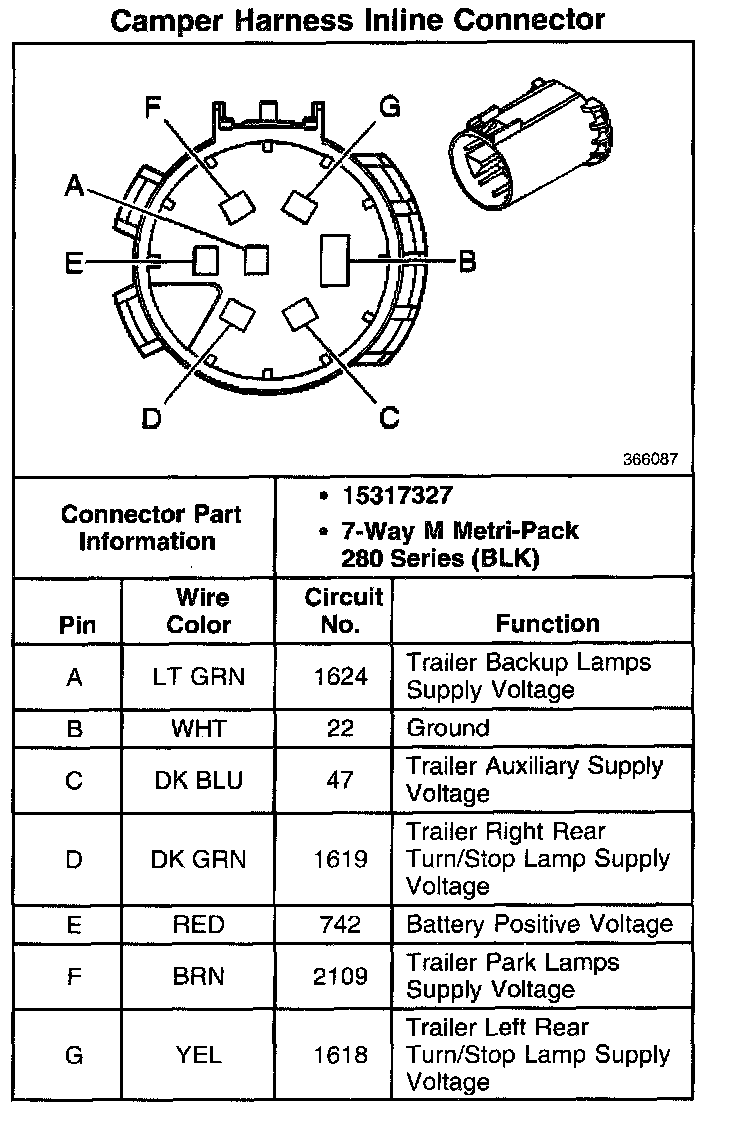

Camper Harness Inline Connector
Camper Harness Inline Connector
Camper Harness Inline Connector:
