Disc Brake System Diagnosis

Disc Brake System Diagnosis

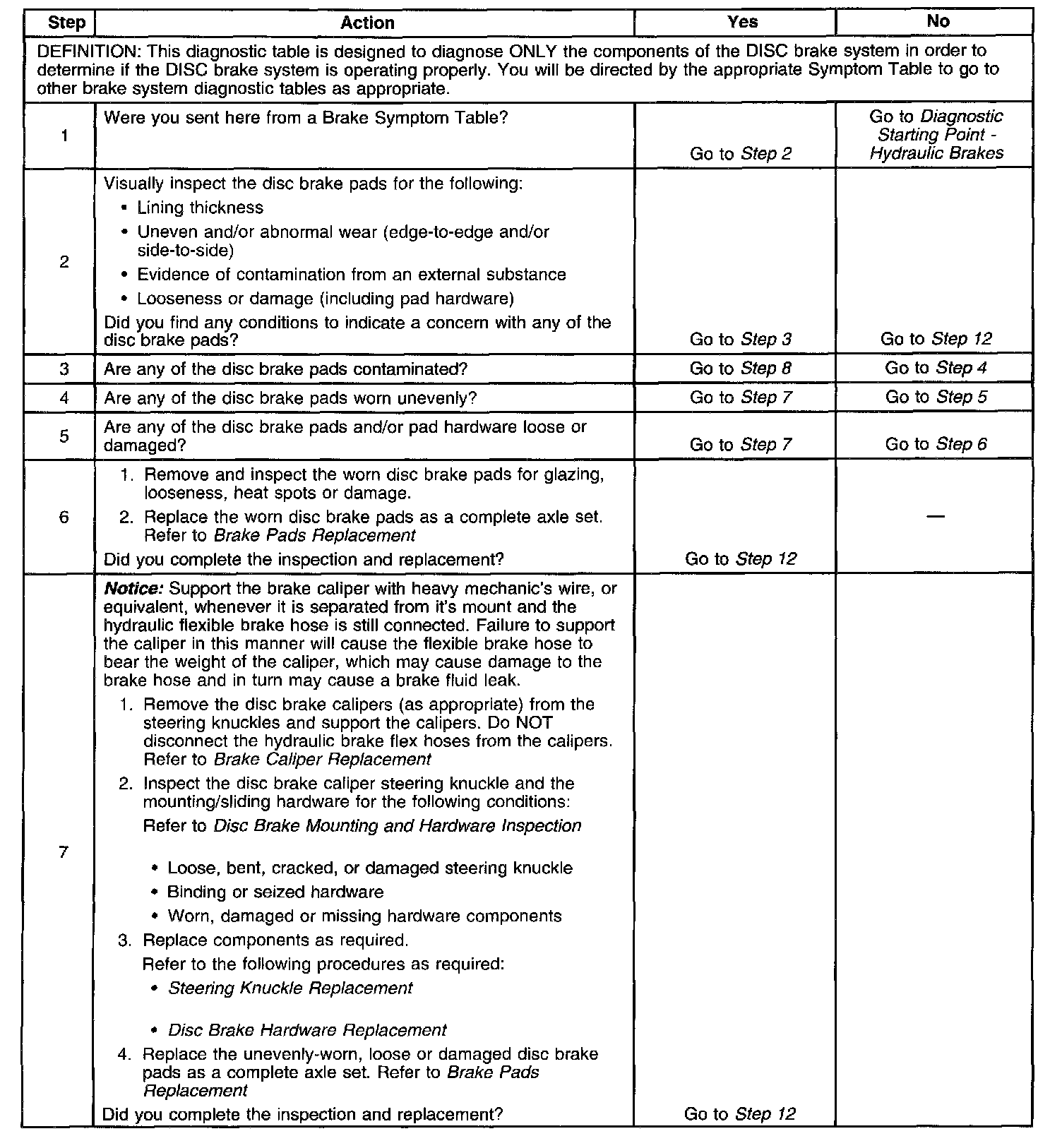

Step 1-7





Step 8-11





Step 12-17





Step 18-20

Test Description
The numbers below refers to the step numbers on the diagnostic table:
9. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
10. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
12. Disc brake rotor shields/backing plates that come in contact with disc brake rotors may cause brake system noise.
