Coolant Heater Cord Replacement

Removal Procedure





1. Turn the ignition OFF.

Important: The strap that secures the coolant heater cord to the diagonal brace is reusable. Do NOT cut this strap in order to remove it.

2. Press the coolant heater strap retainer tab in order to remove coolant heater cord strap.
3. Use wire cutters in order to remove the coolant heater cord upper straps from the engine wiring harness.
4. Raise and support the vehicle. Refer to Vehicle Lifting.

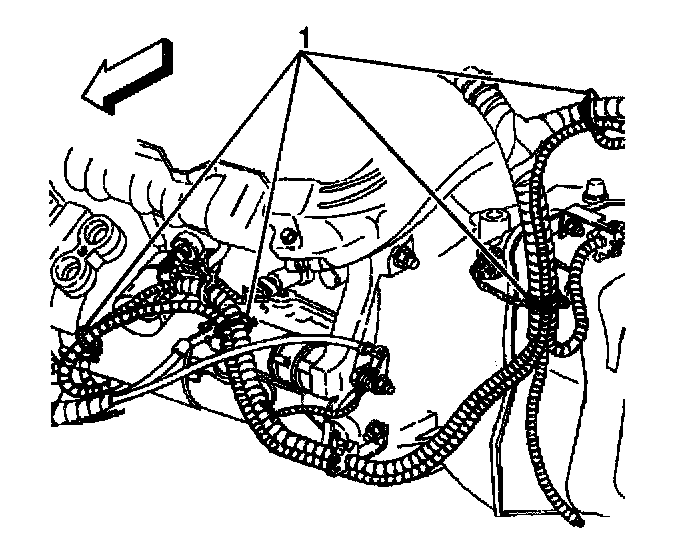

5. Use wire cutters in order to remove the three coolant heater cord lower straps (1) from the engine wiring harness.
6. Remove the right front wheel.
^ For vehicles with steel wheels, refer to Tire and Wheel Removal and Installation in Steering and Suspension.
^ For Chevrolet and Oldsmobile vehicles with aluminum wheels, refer to Tire and Wheel Removal and Installation in Steering and Suspension.
^ For Pontiac and Export vehicles with aluminum wheels, refer to Tire and Wheel Removal and Installation in Steering and Suspension.
7. Remove the right engine splash shield. Refer to Splash Shield Replacement - Engine in Body and Frame.





8. Remove the engine coolant heater cord from the engine coolant heater.
9. Remove the engine coolant heater cord.

Installation Procedure





1. Install the engine coolant heater cord to the engine coolant heater.
2. Properly route the coolant heater cord.





3. Use three new tie straps (1) in order to secure the coolant heater cord to the engine lower wiring harness.
4. Install the right engine splash shield. Refer to Splash Shield Replacement - Engine in Body and Frame.
5. Install the right front wheel.
^ For vehicles with steel wheels, refer to Tire and Wheel Removal and Installation in Steering and Suspension.
^ For Chevrolet and Oldsmobile vehicles with aluminum wheels, refer to Tire and Wheel Removal and Installation in Steering and Suspension.
^ For Pontiac and Export vehicles with aluminum wheels, refer to Tire and Wheel Removal and Installation in Steering and Suspension.
6. Lower the vehicle.
7. Use two new tie straps in order to secure the coolant heater cord to the engine upper wiring harness.





8. Use the reusable strap in order to secure the coolant heater cord to the diagonal brace.
