Overhead Console - VES Replacement

REMOVAL PROCEDURE
1. Remove the rear climate control.
2. Remove the auxiliary video module.
3. Remove the second seat audio control.

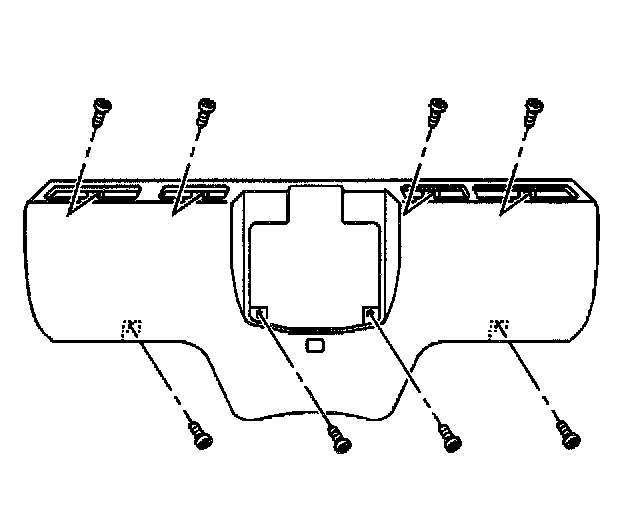

4. Remove the Rear Seat Audio (RSA).
5. Press the video screen release button and flip the video screen to the down position.
6. Remove the screws from the video entertainment system overhead console.
7. Remove the video entertainment system overhead console from the headliner.
8. Transfer the flexible closeout shield around the video screen to the new overhead console, if equipped.

INSTALLATION PROCEDURE
1. Install the video entertainment system overhead console to the headliner.
2. Loosely install the screws to the video entertainment system overhead console.
3. Make sure the video entertainment system overhead console is aligned with the video screen.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Tighten the video entertainment system overhead console screws to 2 N.m (18 lb in).
5. Return the video screen to the up position.
6. Install the rear seat audio (RSA).
7. Install the second seat audio control.
8. Remove the auxiliary video module.
9. Remove the rear climate control.
