B0064

Schematic:

CIRCUIT DESCRIPTION
When you first turn ON the ignition, the inflatable restraint Sensing and Diagnostic Module (SDM) performs tests to diagnose critical malfunctions within itself. Then the SDM performs the following continuous diagnostic tests on the deployment loops:
^ Deployment loop voltage out of range test
^ Deployment loop resistance measurement test

If the voltage out of range test detects a short to voltage condition, the resistance measurement test for that deployment loop will not be performed.

CONDITIONS FOR RUNNING THE DTC
^ Ignition 1 voltage is within the normal operating voltage range.
^ Driver seat belt pretensioner deployment loop is not open.
^ Driver seat belt pretensioner deployment loop is not shorted to voltage.
^ Driver seat belt pretensioner deployment loop is not shorted to ground.

CONDITIONS FOR SETTING THE DTC
Driver seat belt pretensioner deployment loop resistance is less than 1.3 Ohms for 300 milliseconds.

ACTION TAKEN WHEN THE DTC SETS
The SDM commands ON the AIR BAG warning lamp via Class 2 serial data.

CONDITIONS FOR CLEARING THE DTC
^ You can issue a CLEAR CODES command
^ A history DTC will clear once 255 malfunction free ignition cycles have occurred

DIAGNOSTIC AIDS
The following can cause an intermittent condition:
^ A short between the driver belt high and the driver belt low circuits.
^ A malfunctioning shorting bar on the driver seat belt pretensioner yellow 2-way connector.
^ Refer to Testing for Intermittent and Poor Connections in Diagrams.

TEST DESCRIPTION

Steps 1 - 7:

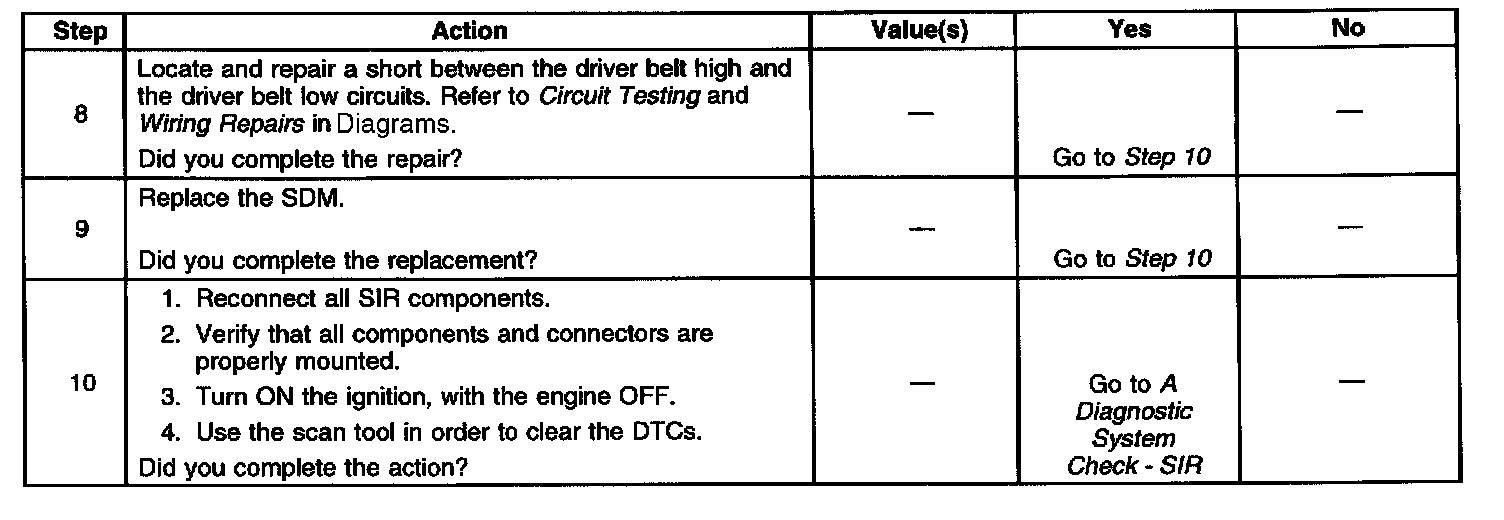

Steps 8 - 10:

The number(s) below refer to the step number(s) on the diagnostic table.
2. This step checks the driver seat belt pretensioner yellow 2-way connector.
5. This step checks to see if there is a malfunctioning driver seat belt pretensioner.
7. This step determines if there is a short between the driver belt high and the driver belt low or if there is a malfunctioning SDM.
