Clutch Pedal Position Switch and Stoplamp Switch
Clutch Pedal Position Switch and Stoplamp Switch

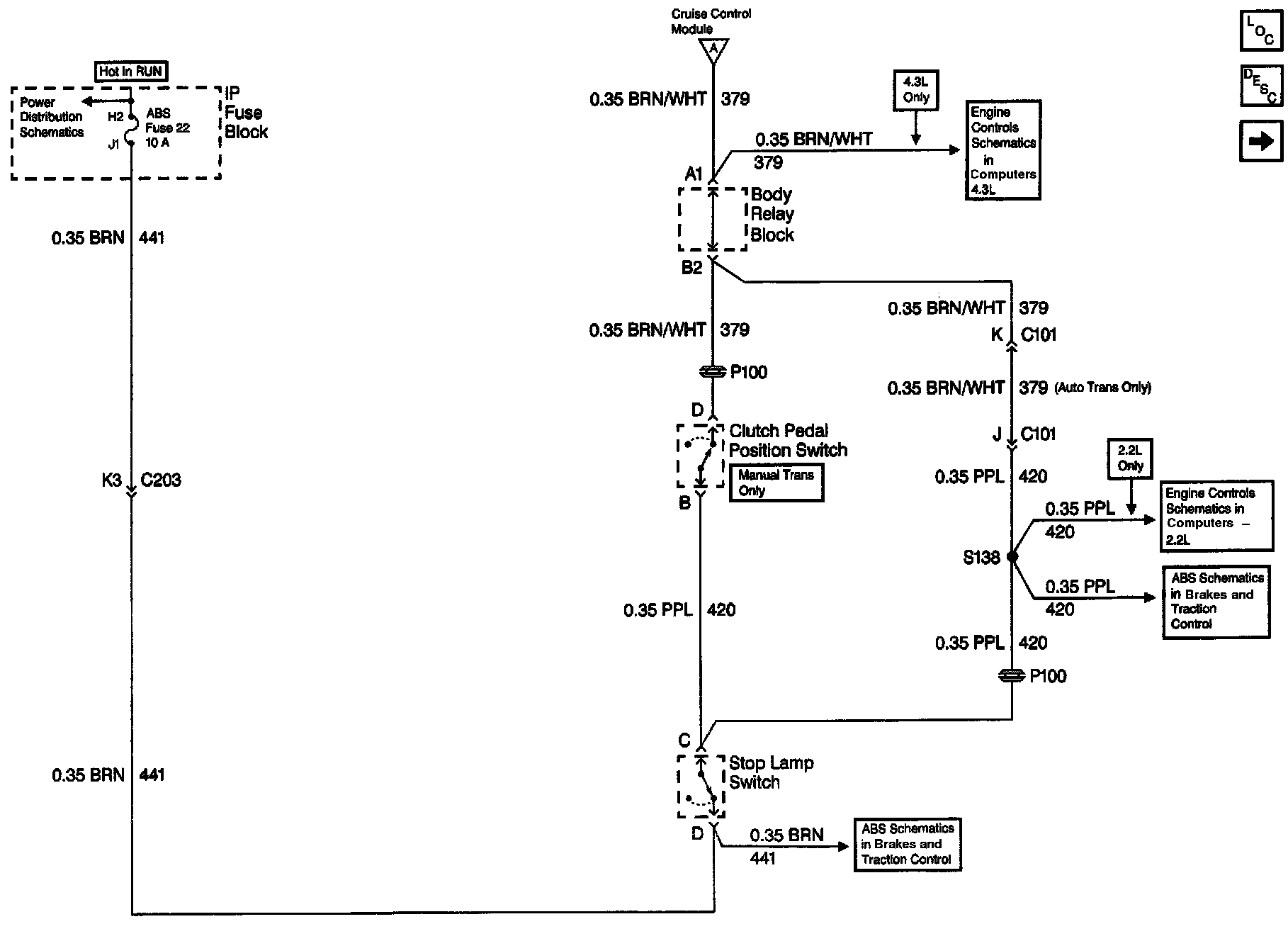

Cruise Control Schematics: Clutch Pedal Position Switch And Stoplamp Switch:
