C317 (Body Harness to Driver's Seat Assembly Pigtail Connector)
C317 (Body Harness to Driver's Seat Assembly Pigtail Connector)

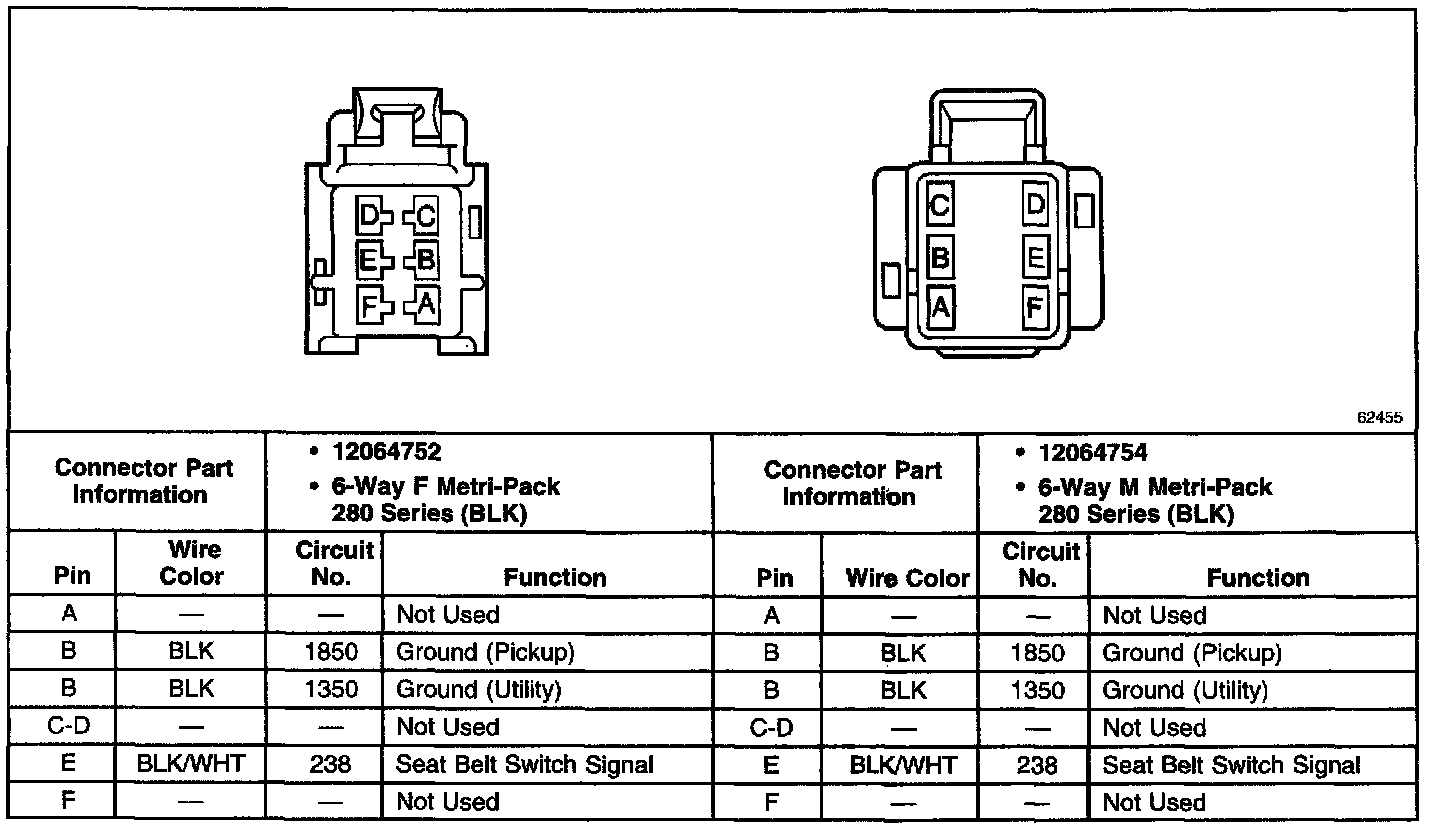

C317 (Pickup Body Harness To Driver's Seat Assembly Pigtail Connector):
