Home
>>
Chevy Truck
>>
2000
>>
S10/T10 P/U 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Inside Rear View Mirror (W/Light Sensitive and Reading Lamps)
Inside Rear View Mirror (W/Light Sensitive and Reading Lamps)

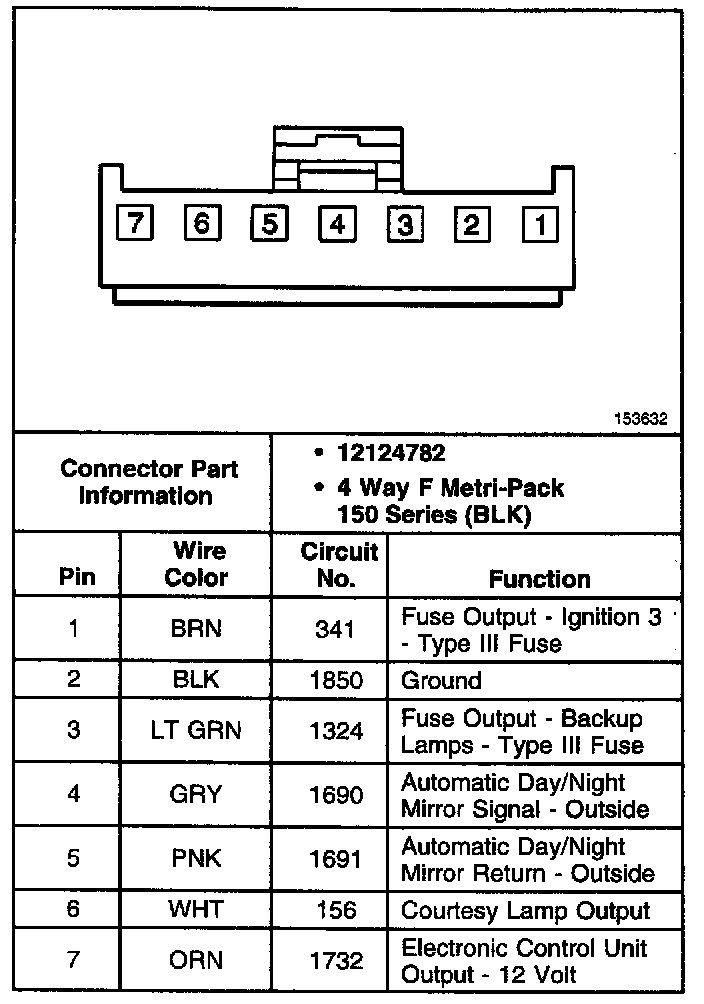

Inside Rear View Mirror (w/Light Sensitive And Reading Lamps):
