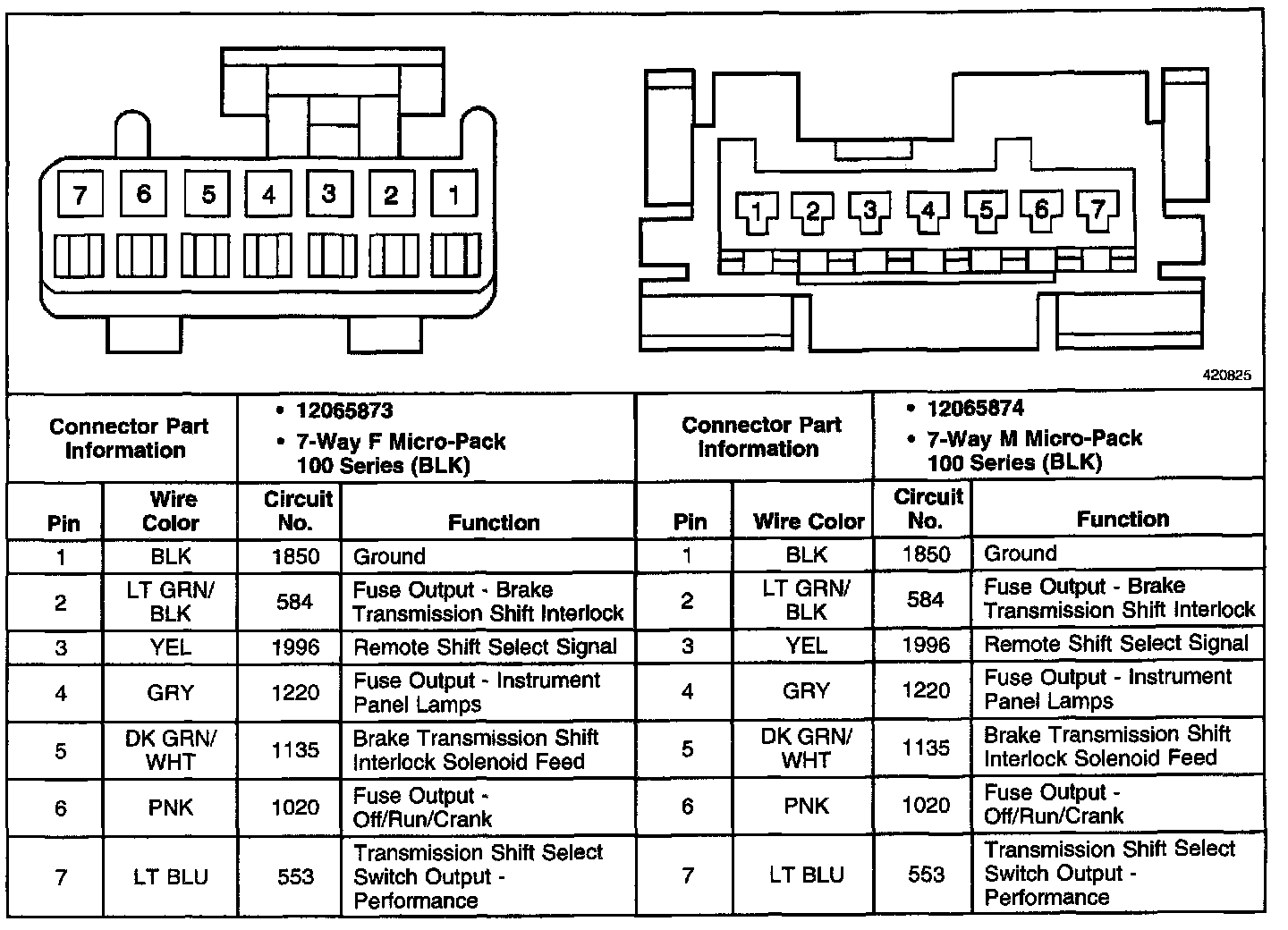

C204 (Floor Shifter Harness to Body Harness)

C204 (Floor Shifter Harness To Body Harness) (Utility):
