Operation CHARM
: Car repair manuals for everyone.
Hosted by
mcallihan.com
Home
>>
Chevy Truck
>>
2000
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Connector Views
>>
Headlamp Ambient Sensor
Headlamp Ambient Sensor

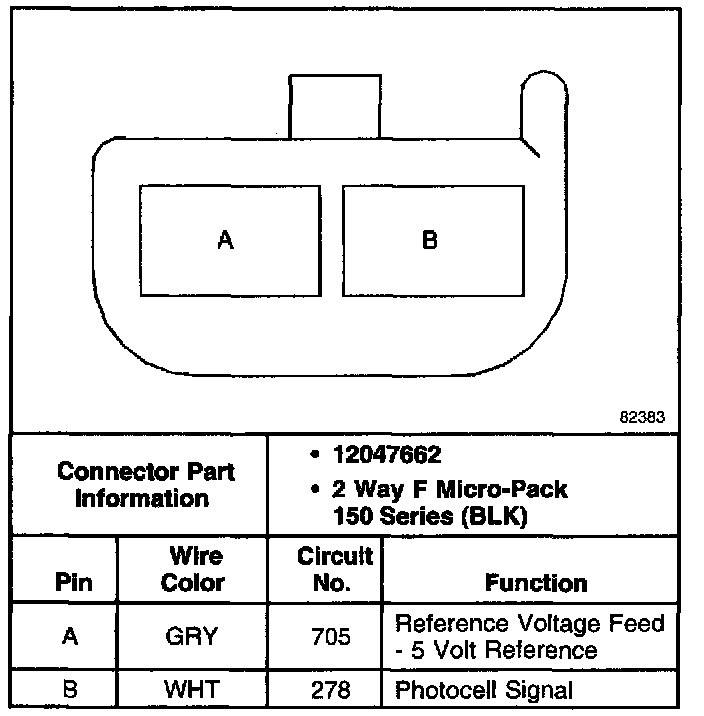

Headlamp Ambient Sensor:
