66. Oil Pump Installation

1. Inspect for properly installed pins (oil pump locator).





Important: Do not reuse the oil pump driveshaft retainer. During assembly, install a NEW oil pump driveshaft retainer.

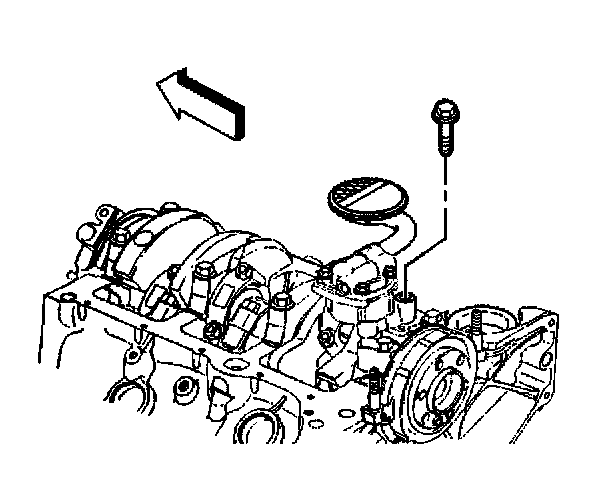

2. Install the oil pump.
3. Position the oil pump onto the pins.





Notice: Refer to Fastener Notice in Service Precautions.

4. Install the oil pump bolt attaching the oil pump to the rear crankshaft bearing cap.

^ Tighten the oil pump bolt to 90 Nm (66 ft. lbs.).
