Ign A Fuse and Ignition Switch
Ign A Fuse and Ignition Switch

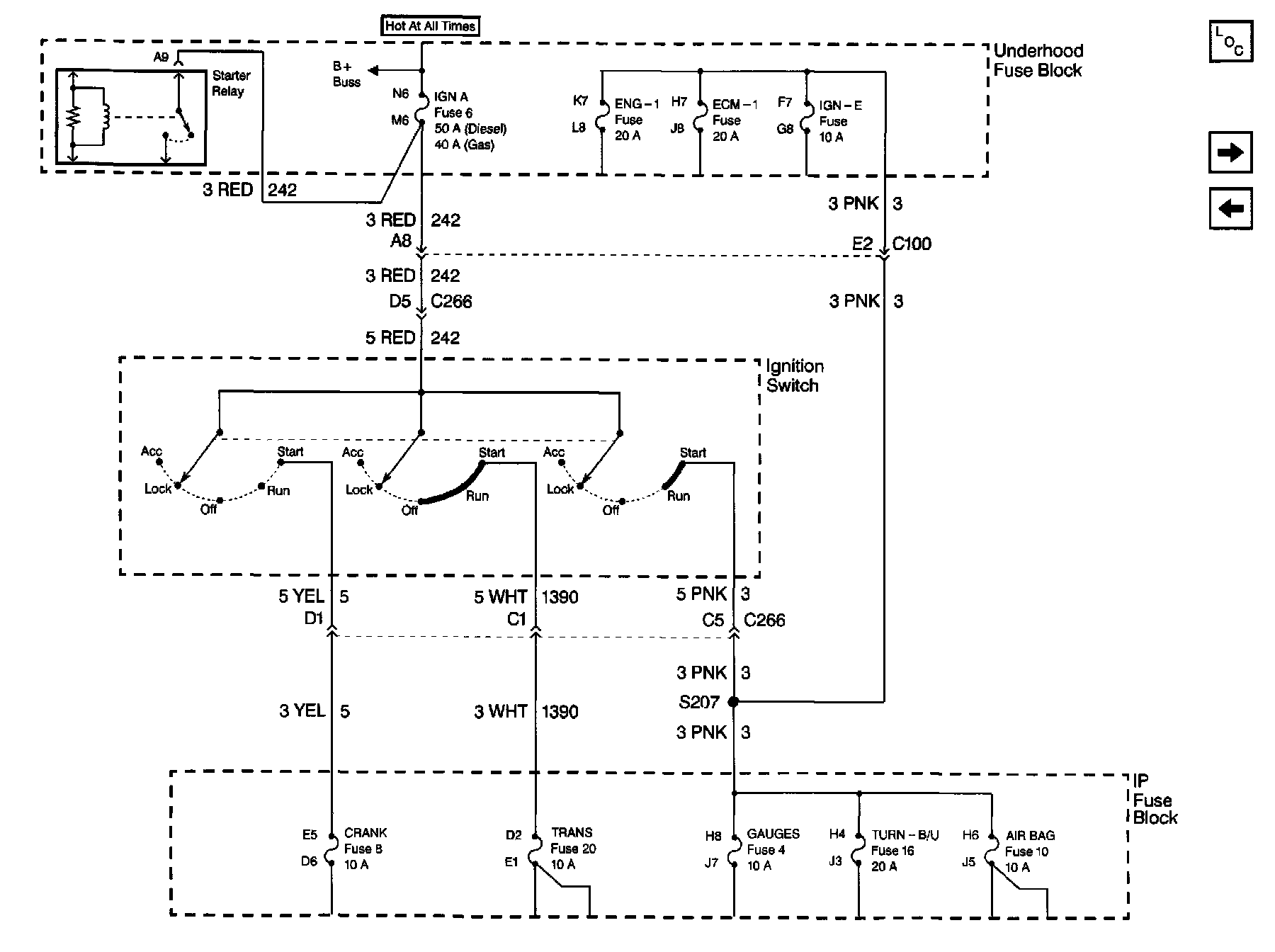

Power Distribution Schematics: IGN A Fuse and Ignition Switch:
