Home
>>
Chevy Truck
>>
2000
>>
K Tahoe 4WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
System Diagram
>>
Door Lock/Indicator Schematics (Luxury)
>>
Door Lock Motors and Body Control Module
Door Lock Motors and Body Control Module

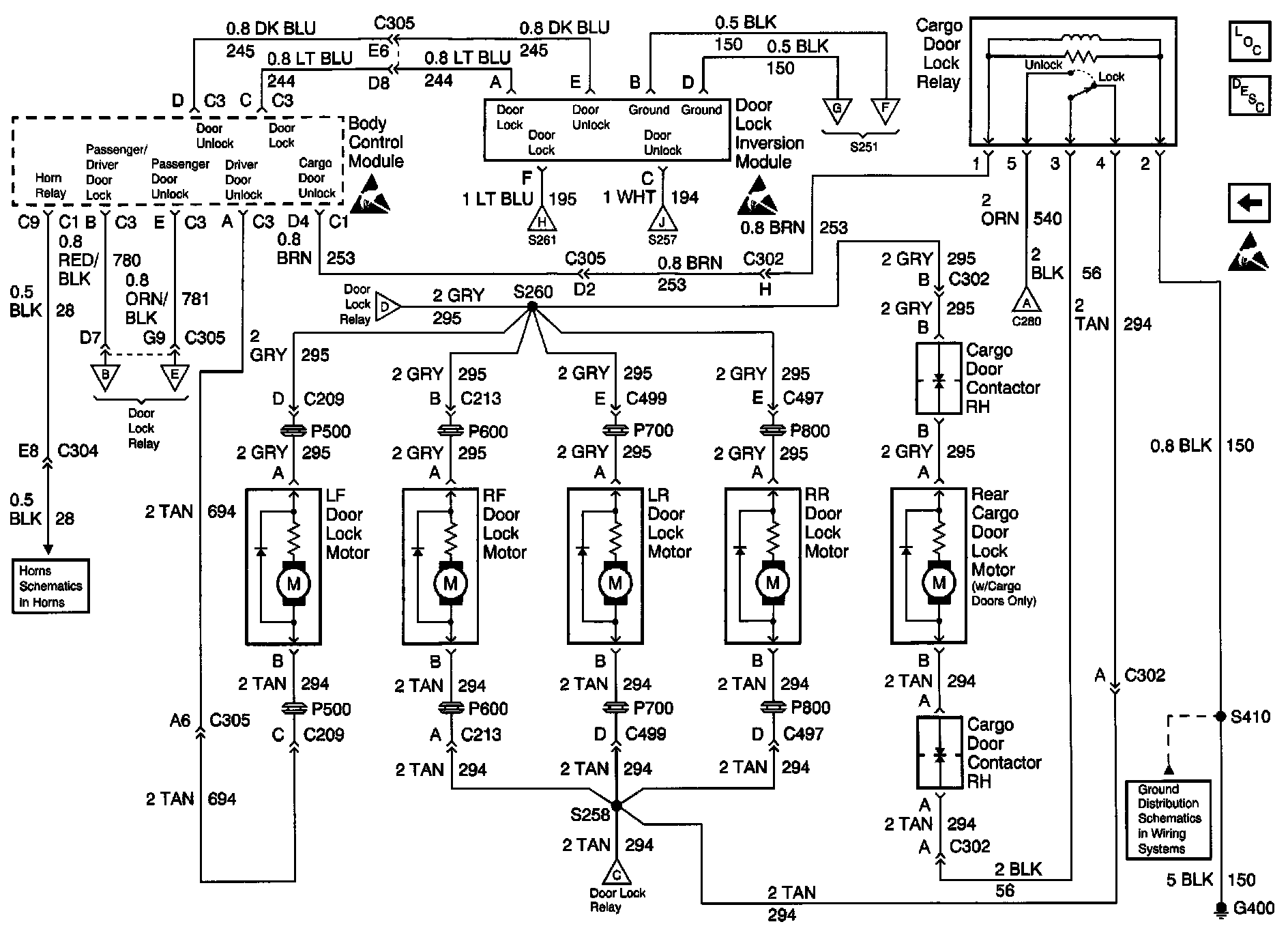

Door Lock/Indicator Schematics (Luxury): Door Lock Motors and Body Control Module:
