Home
>>
Chevy Truck
>>
2000
>>
K Tahoe 4WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Diagrams
>>
Electrical Diagrams
>>
Except Luxury
Except Luxury

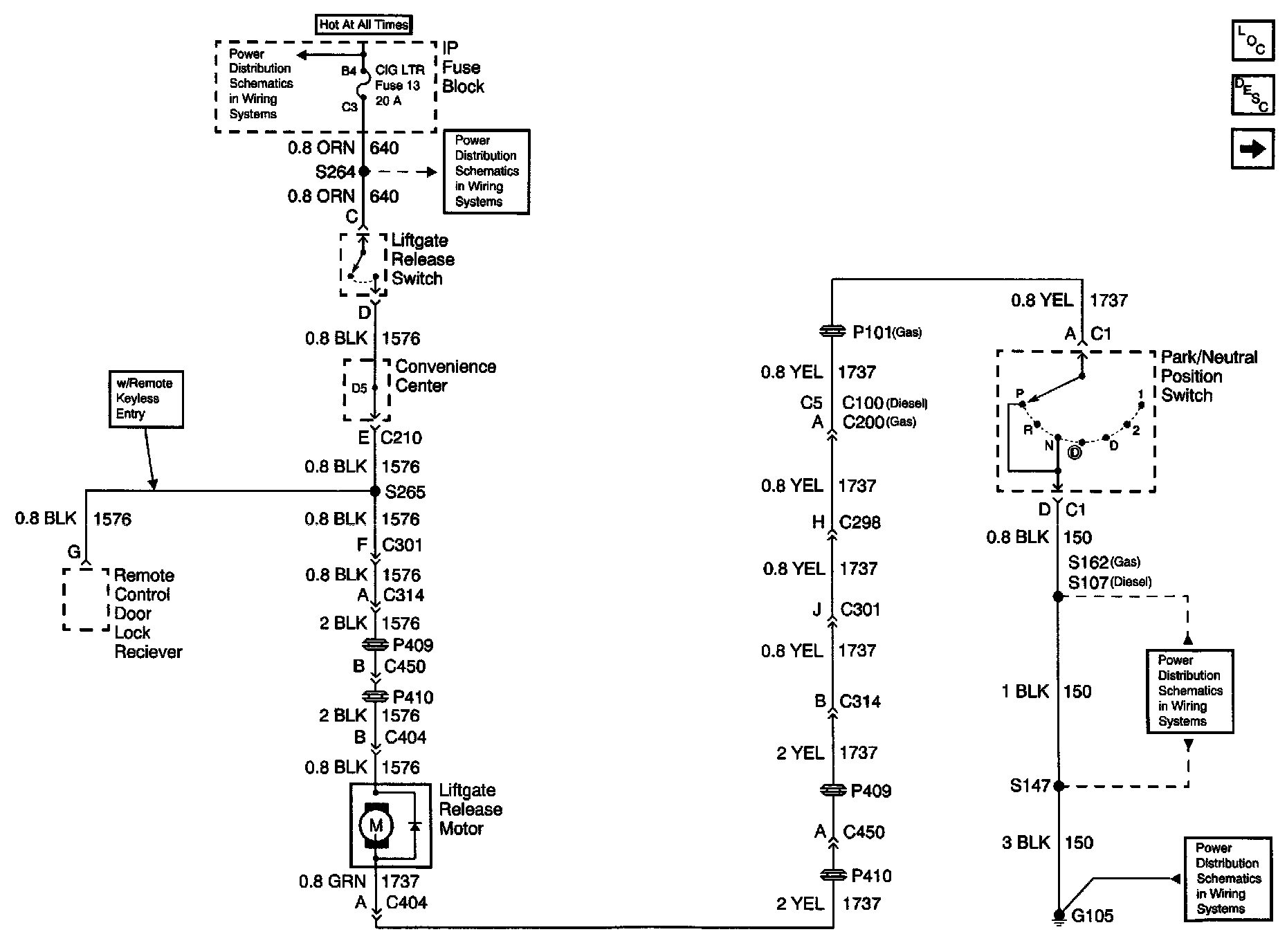

Release Systems Schematics: Except Luxury:
