P0339

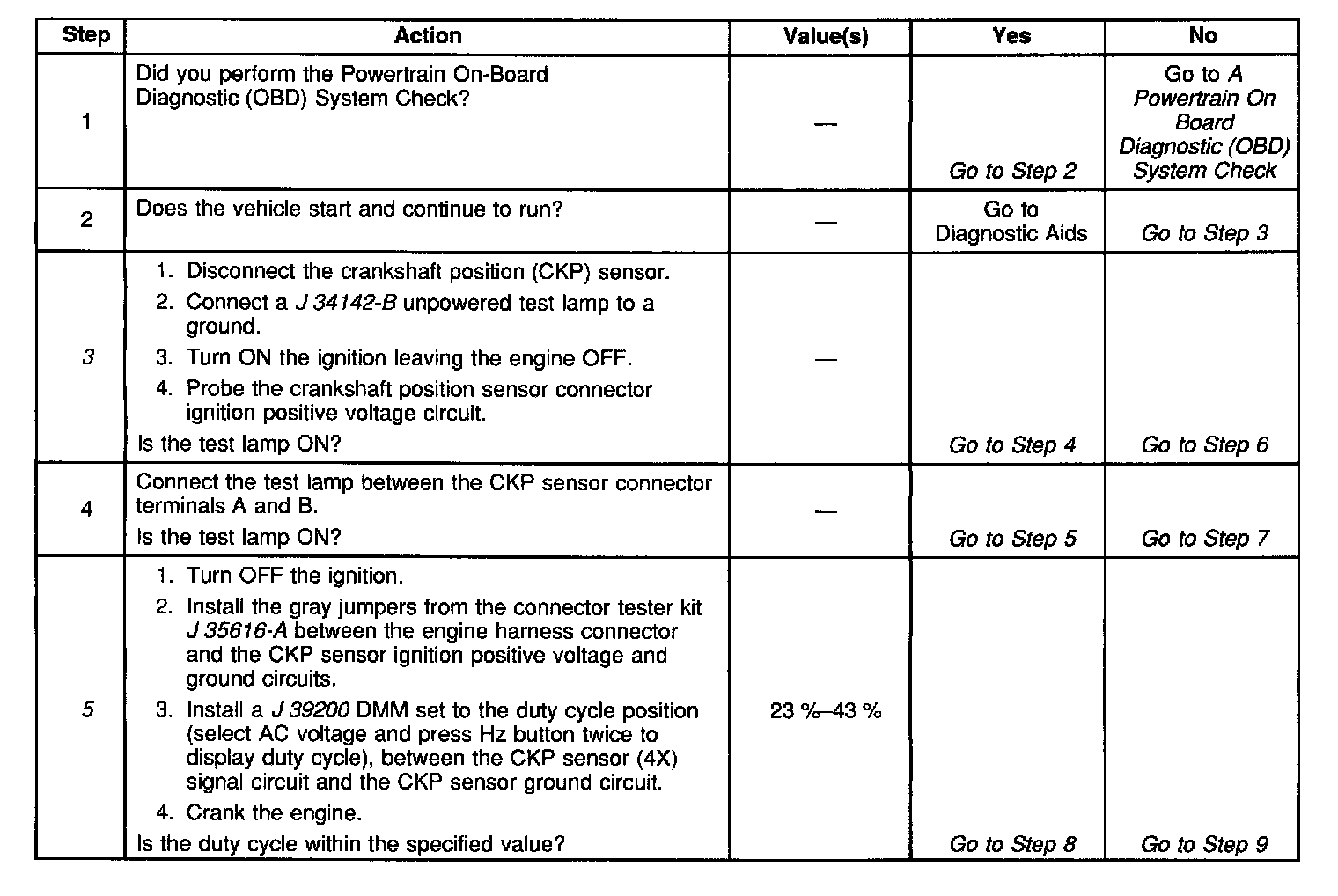

Diagnostic Chart (Part 1 Of 2):

Diagnostic Chart (Part 2 Of 2):

Schematic:

If a loss of the CKP signal or an erratic signal is detected by the VCM while the engine is running, this DTC will be set.

CIRCUIT DESCRIPTION
The Crankshaft Position (CKP) sensor is a sensor designed to detect changes in a magnetic field. The control module (PCM/VCM) supplies the CKP sensor a signal and ground circuits. Ignition voltage is supplied to the sensor by an independent circuit. The CKP sensor produces a magnetic field whenever the ignition is ON. The CKP sensor is mounted near a reluctor wheel that is attached to the crankshaft. When the crankshaft rotates (the engine is cranking or running) the toothed reluctor wheel changes the magnetic field. The CKP sensor converts each change in the magnetic field into a PULSE. The number of teeth on the reluctor wheel determines how many pulses the CKP sensor detects per crankshaft rotation. The CKP sensor signal is used in order to determine engine speed, crankshaft position, and detect misfire.

CONDITIONS FOR RUNNING THE DTC
The MAF is 5 g/s or more

CONDITIONS FOR SETTING THE DTC
The measured change in engine speed is 1000 RPM or more during a 125 ms time period
OR
The measured engine speed is 0 RPM and 4 or more camshaft position sensor pulses have occurred over a period of 2-3 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the Malfunction Indicator Lamp (MIL). If a failure is detected during 2 consecutive key cycles.
^ The control module sets the DTC and records the operating conditions at the time the diagnostic failed. The failure information is stored in the scan tools Freeze Frame and Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The control module turns OFF the MIL after 3 consecutive drive trips when the test has Run and Passed
^ A history DTC will clear if no fault conditions have been detected for 40 warm-up cycles. A warm up cycle occurs when the coolant temperature has risen 22°C (40°F) from the startup coolant temperature and the engine coolant reaches a temperature that is more than 70°C (158°F) during the same ignition cycle.
^ A scan tool can clear the DTCs.

DIAGNOSTIC AIDS
Inspect the face of the CKP sensor for metallic particles. This could result in an intermittent DTC.

Check for the following conditions:
^ A chipped or damaged reluctor wheel
^ An incorrect reluctor wheel
^ The incorrect alignment of the CKP sensor to the reluctor wheel
^ Excessive crankshaft end play
^ Refer to Symptoms. Symptom Related Diagnostic Procedures

Check for the following conditions:

An intermittent may be caused by any of the following conditions:
^ A poor connection
^ Rubbed through wire insulation
^ A broken wire inside the insulation

Thoroughly check any circuitry that is suspected of causing the intermittent complaint. Refer to Testing for Intermittent and Poor Connections in Diagrams.

If a repair is necessary, then refer to Wiring Repairs or Connector Repairs in Diagrams. Refer to Symptoms. Symptom Related Diagnostic Procedures

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
3. Checks the ignition positive voltage circuit to the crankshaft position sensor.
5. Checks the duty cycle of the crankshaft position sensor.
