Home >> Chevy Truck >> 2000 >> K 2500 Suburban 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Relays >> Compressor Leveling Module

Compressor Leveling Module

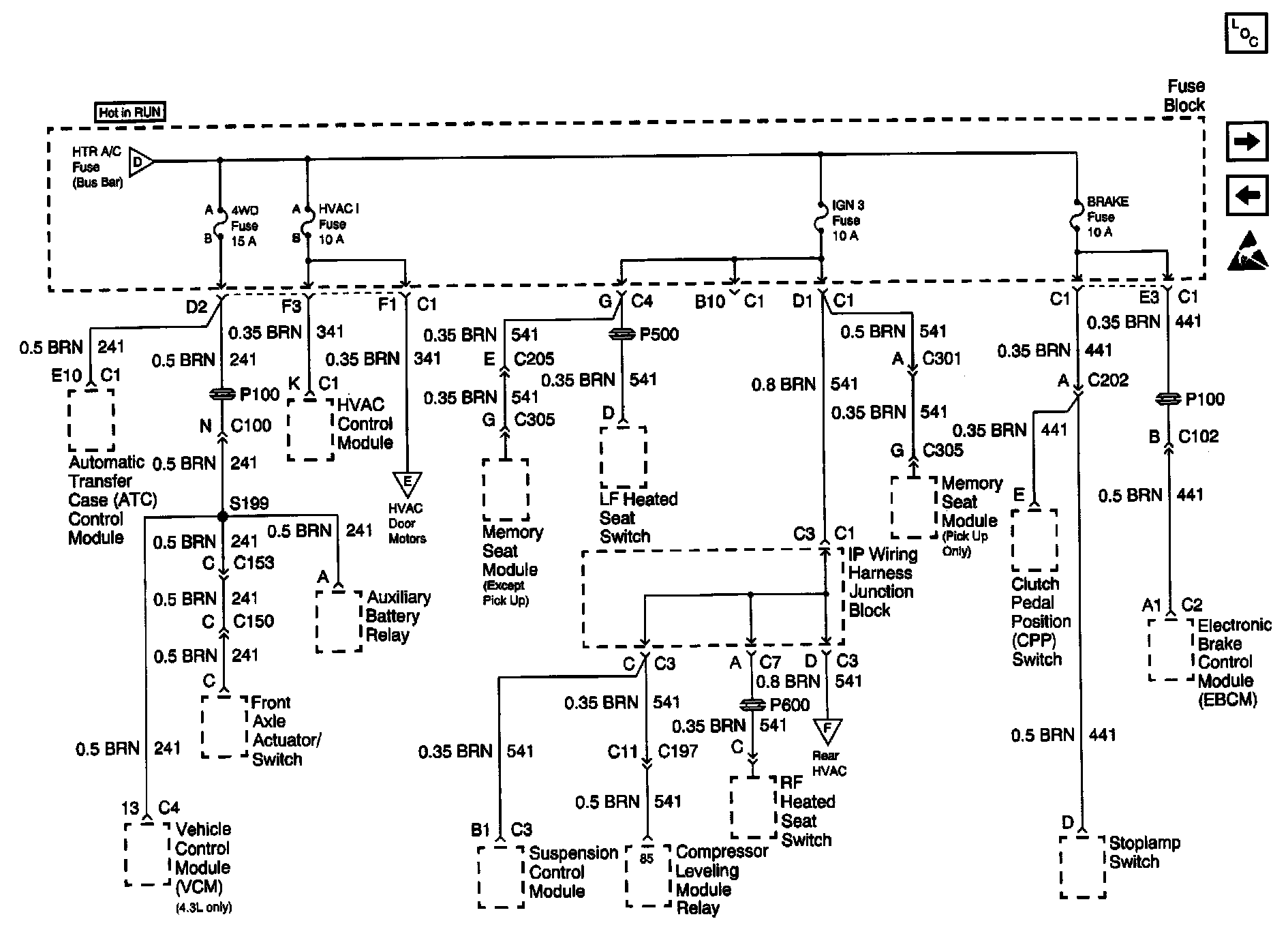

Power Distribution Schematics: ABS, Suspension Control Module, HVAC:
