Home >> Chevy Truck >> 2000 >> K 2500 Suburban 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Ambient Temperature Sensor / Switch HVAC >> Diagrams >> Inside Air Temperature Sensor (Over Head)

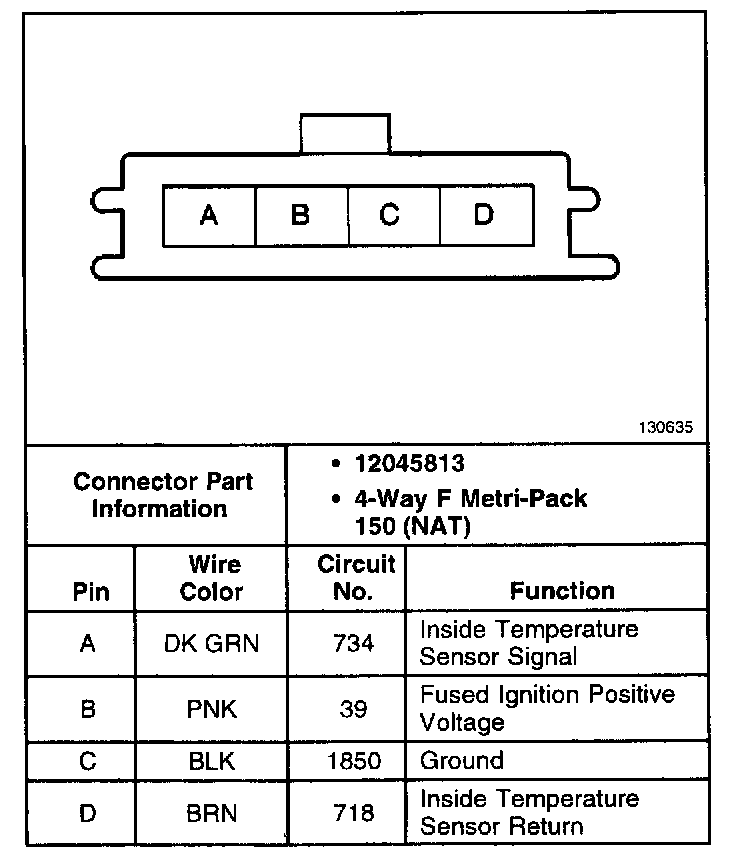

Inside Air Temperature Sensor (Over Head)

Inside Air Temperature Sensor (Over Head):
