Home
>>
Chevy Truck
>>
2000
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C400 - C499
>>
C407
C407

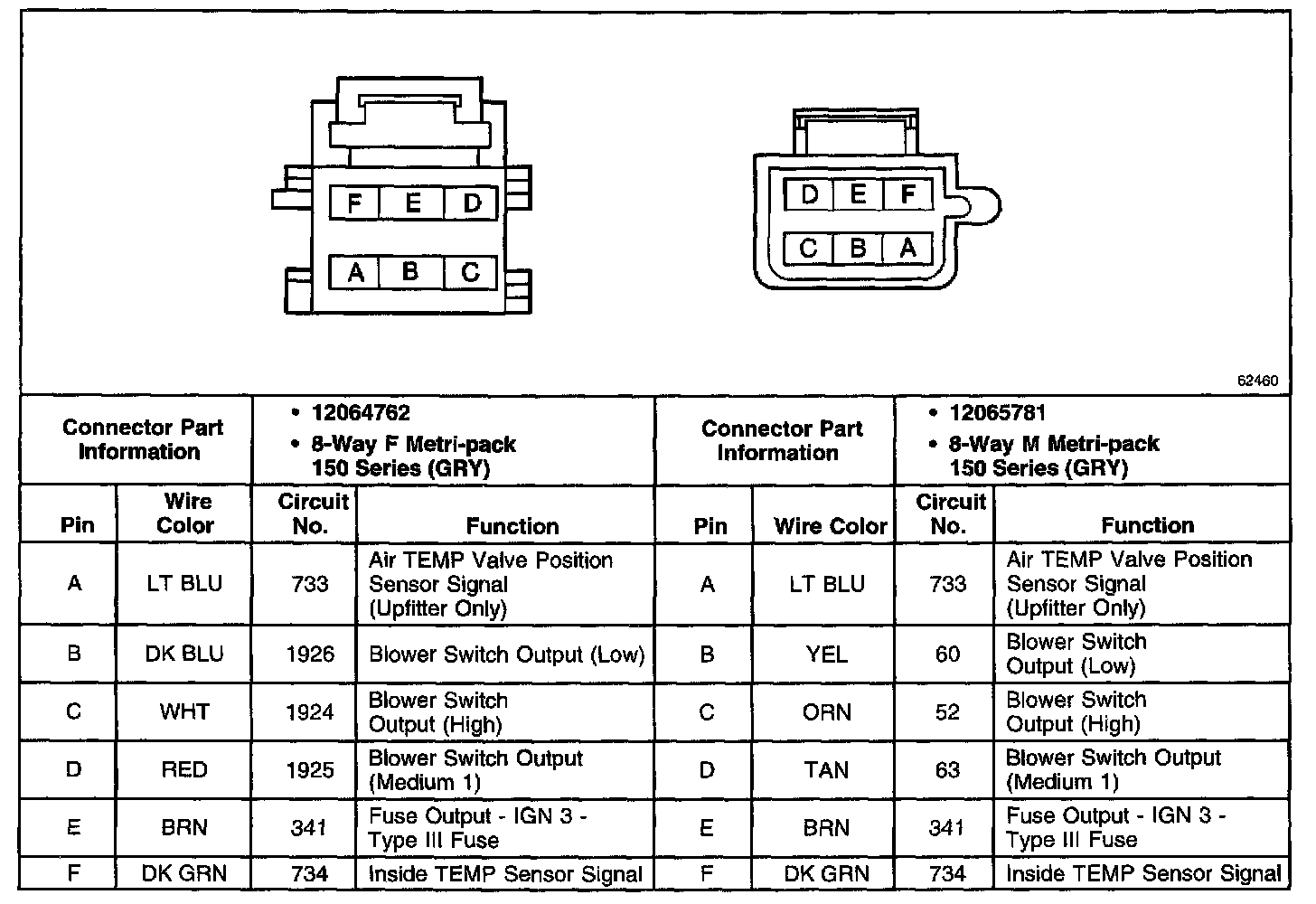

In-Line Harness Connector C407:
