Hazard Warning Switch, Turn/Hazard Lamp Flasher

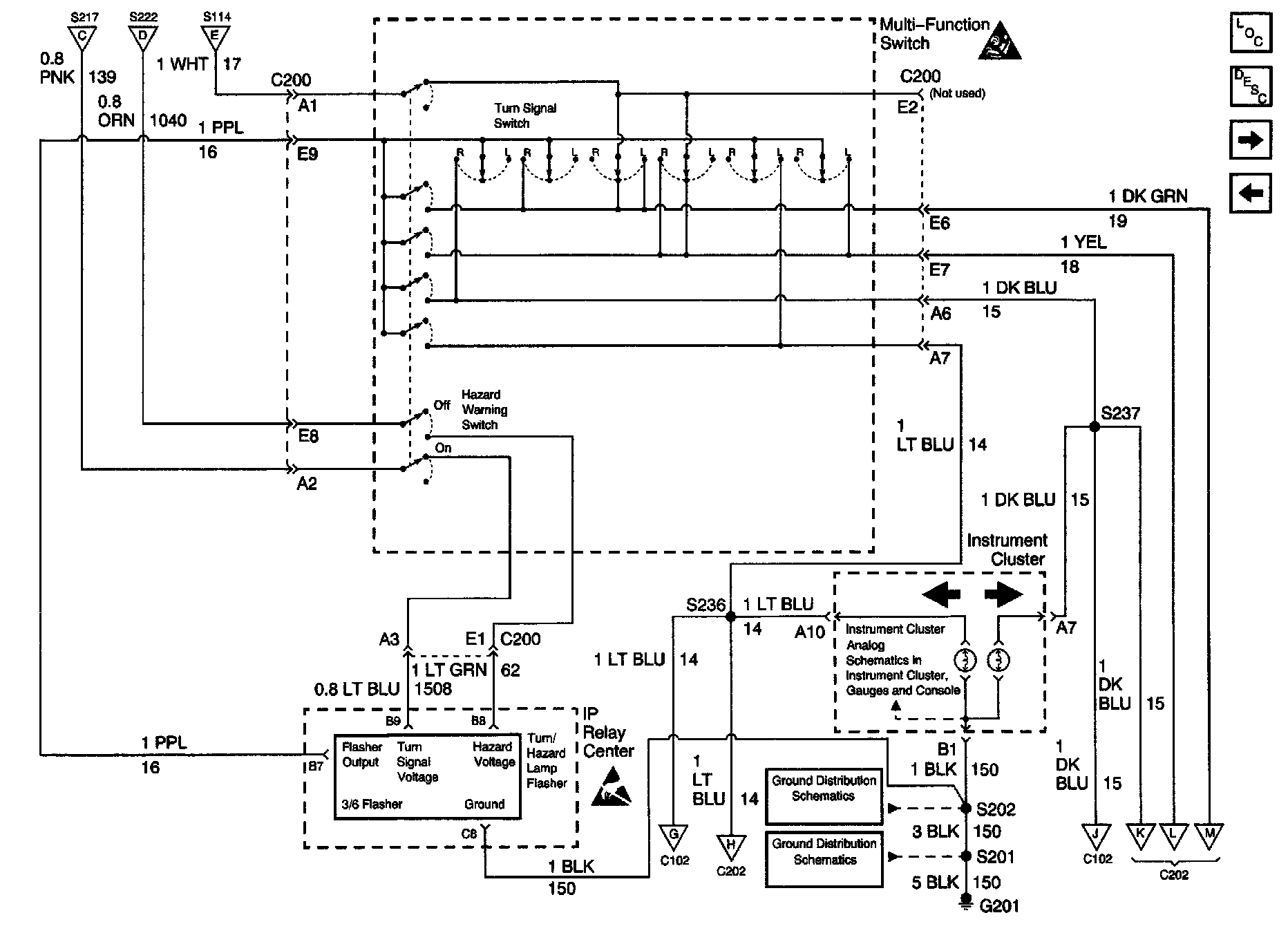

Exterior Lights Schematics (Domestic): Hazard Warning Switch, Turn/Hazard Lamp Flasher:
