Dr Lk Actuator, Side Door Contacts

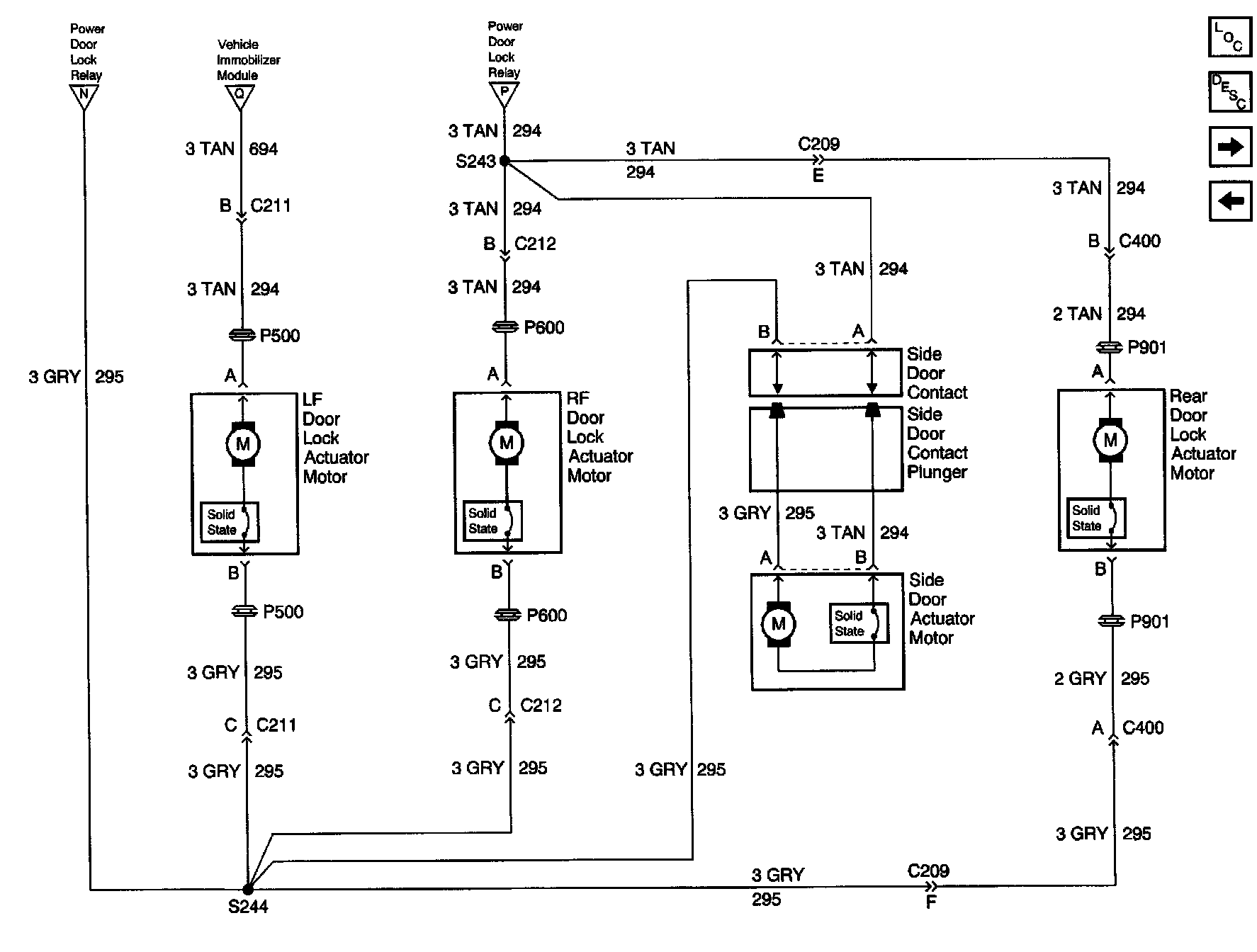

Theft Deterrent System Schematics (Export): Dr Lk Actuator, Side Door Contacts:
