Power Outside Rearview Mirror Remote Control Switch Connector
Power Outside Rearview Mirror Remote Control Switch Connector

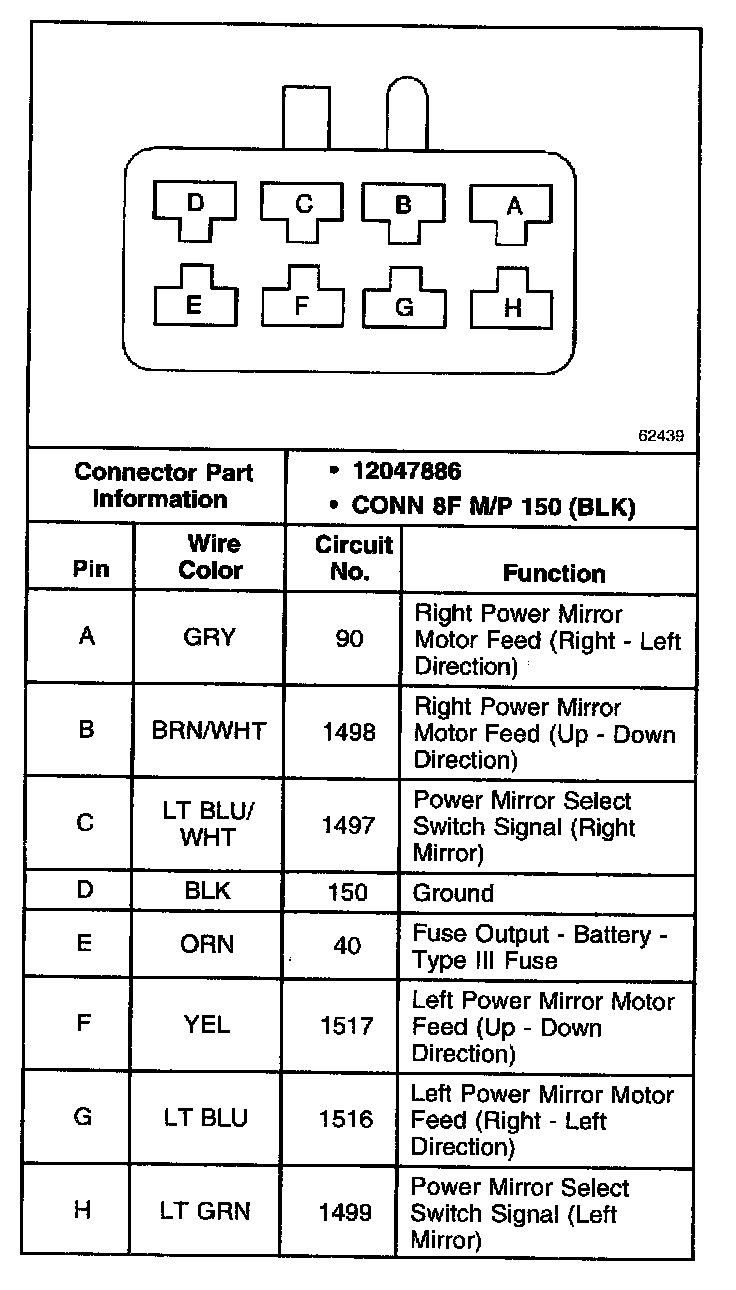

Power Outside Rearview Mirror Remote Control Switch Connector:
