Shifter M/T: Service and Repair

Removal Procedure

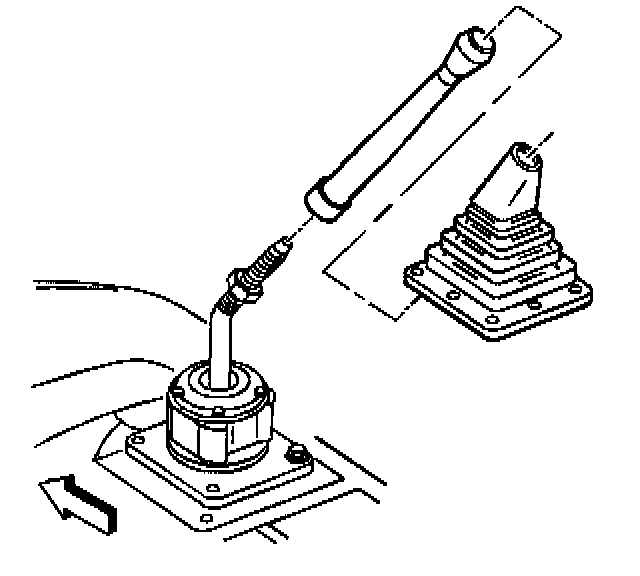

1. Remove four screws and the shift boot trim plate securing the shift tower boot to the floor panel and the insulator.

Important: Do not disassemble the transmission shift housing. Internal parts for the shift housing are not available. Opening the shift housing will void the shift housing warranty.

2. Remove the shift lever from the transmission shift housing lever.
3. Remove the boot from the shift lever.

Installation Procedure





1. Install the boot to the shift lever.
2. Install the shift lever to the transmission shift tower lever.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the four screws securing the shift housing boot to the floor panel and the insulator.
^ Tighten the screws to 2 Nm (18 inch lbs.).
4. Install the shift boot trim plate and screws.
