Home >> Chevy Truck >> 1999 >> S10/T10 P/U 4WD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights >> PARK LP Fuse and Park Lamp Relay

PARK LP Fuse and Park Lamp Relay

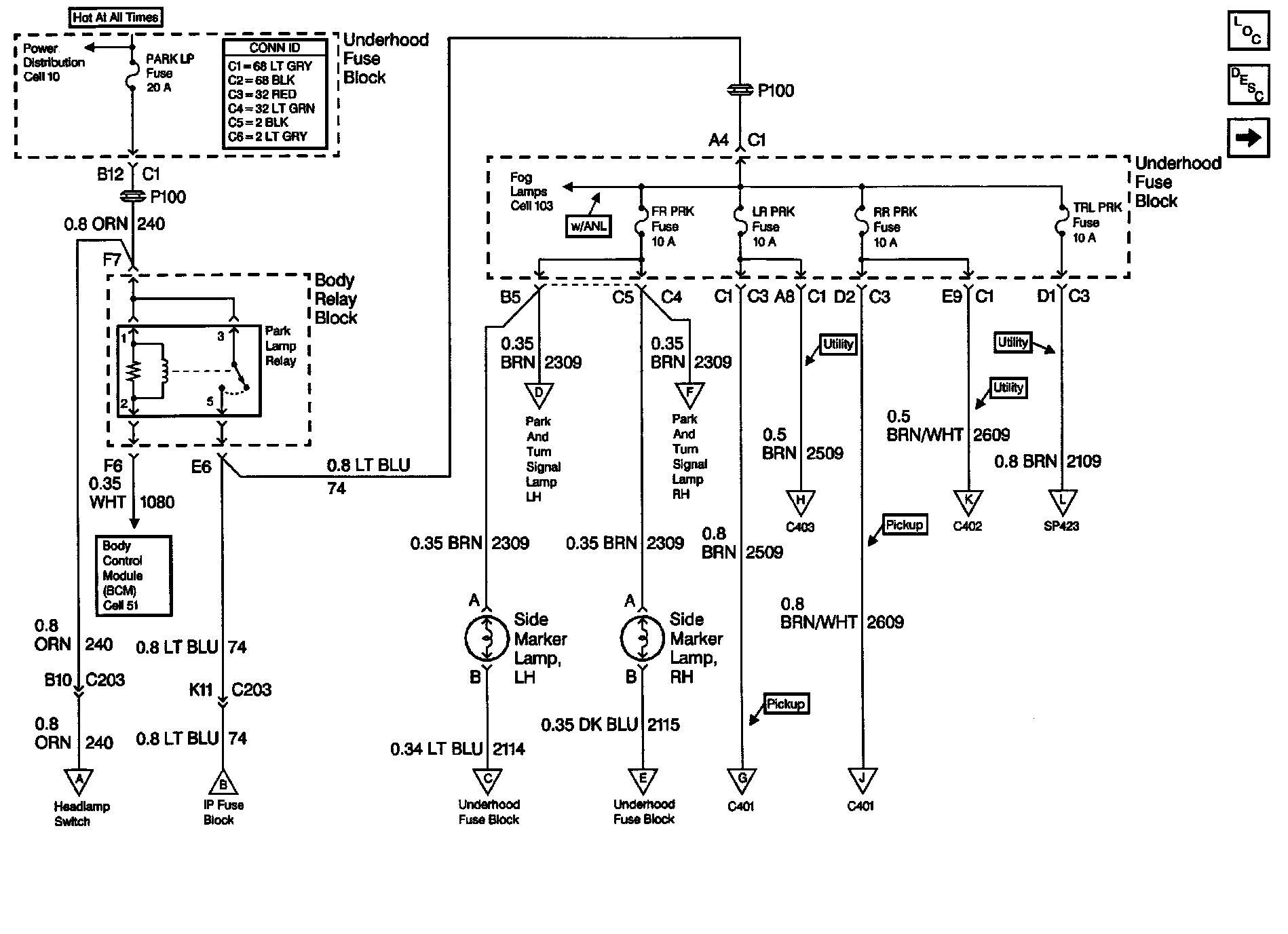

Exterior Lights Schematics: PARK LP Fuse and Park Lamp Relay:
