Home
>>
Chevy Truck
>>
1999
>>
K 2500 Truck 4WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Windows and Glass
>>
Power Window Switch
>>
Diagrams
>>
Connector Views
>>

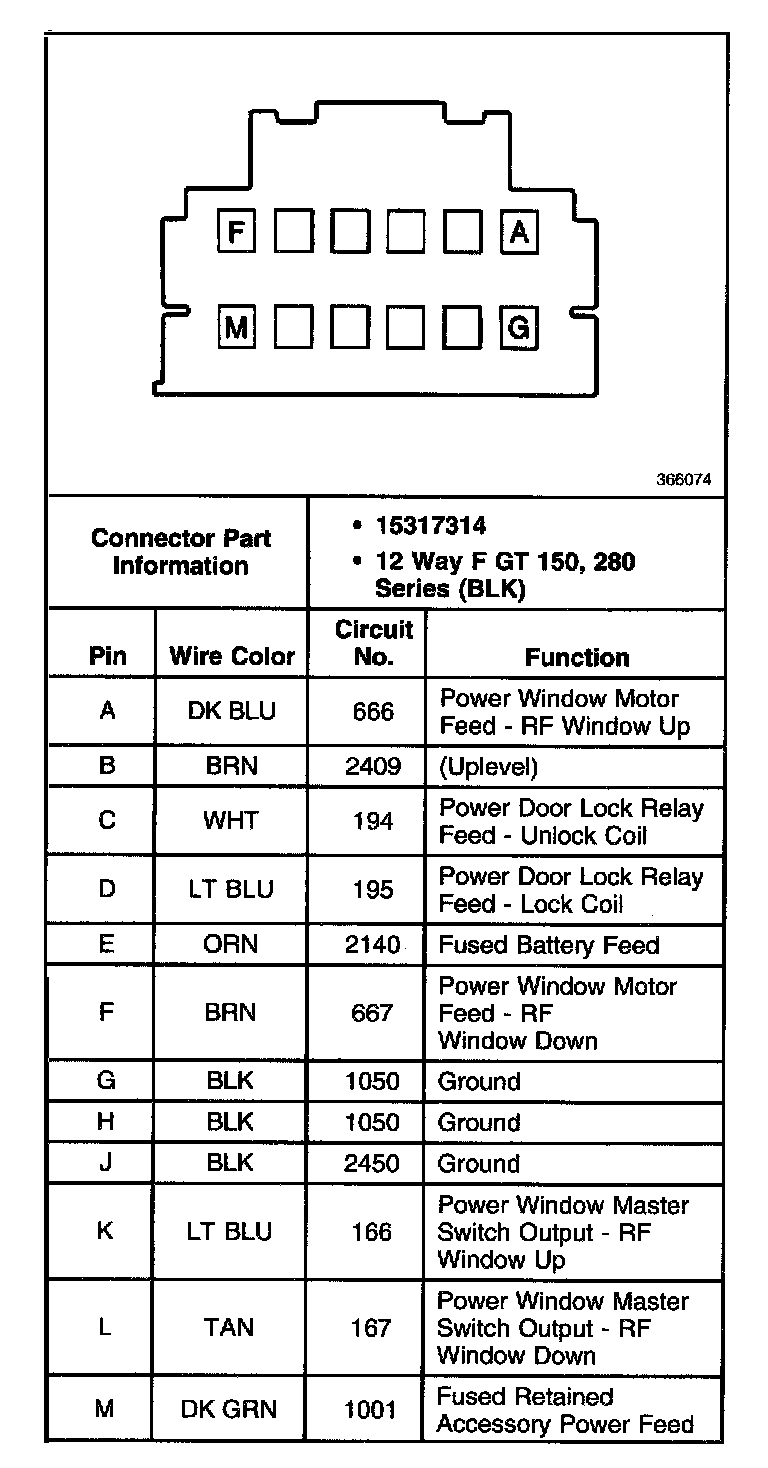

Power Window/Door Lock Switch, RH
Power Window/Door Lock Switch, RH
RH Power Window/Door Lock Switch:
