C110
C110

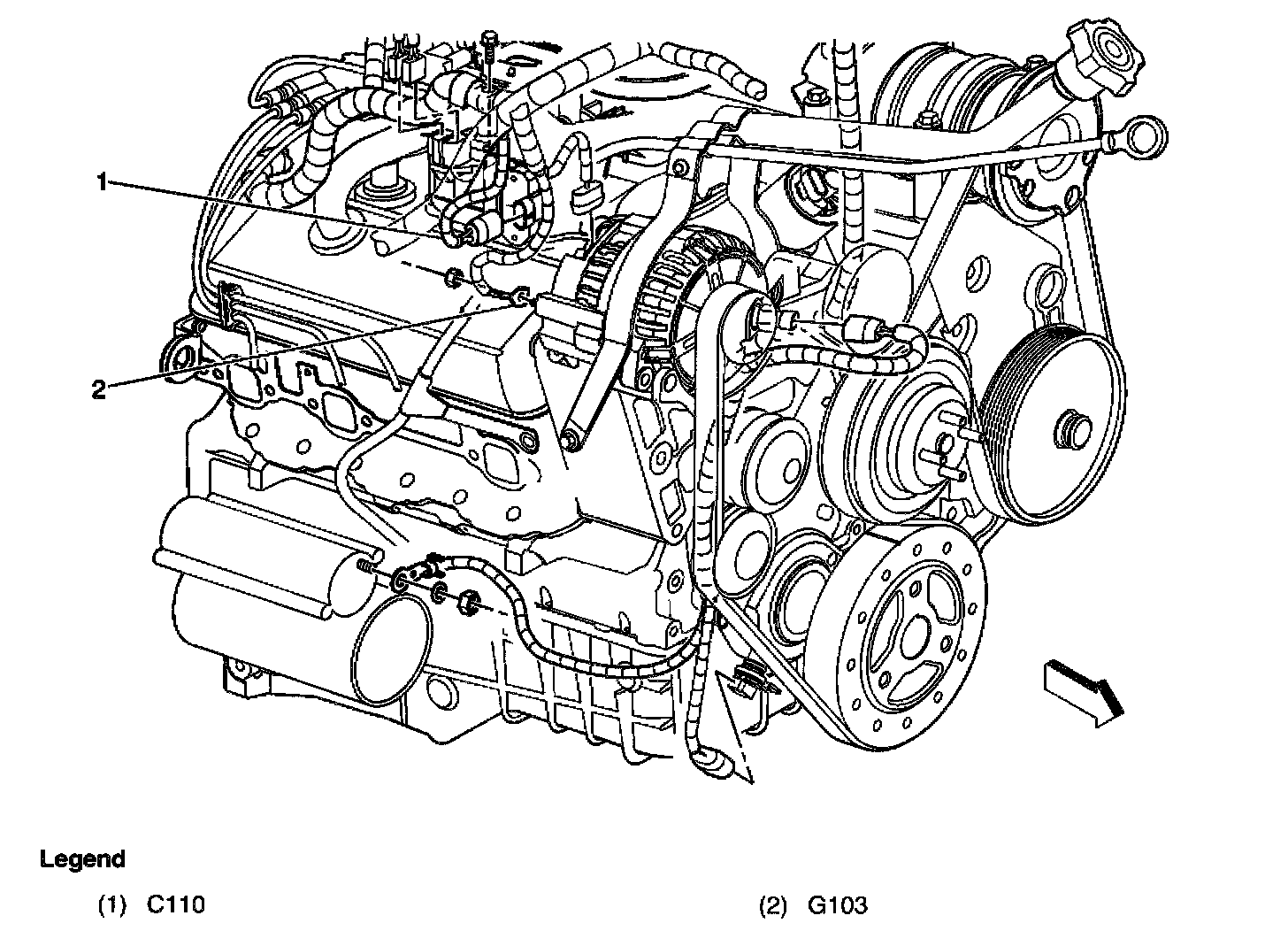

Engine Harness, Right Side:
Engine harness, in line to the engine sensors, on the front RH side
