Chevy Truck
>>
1999
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
>>
Bank 2 Sensor 1
>>
Bank 2 Sensor 1 (4L80-E)

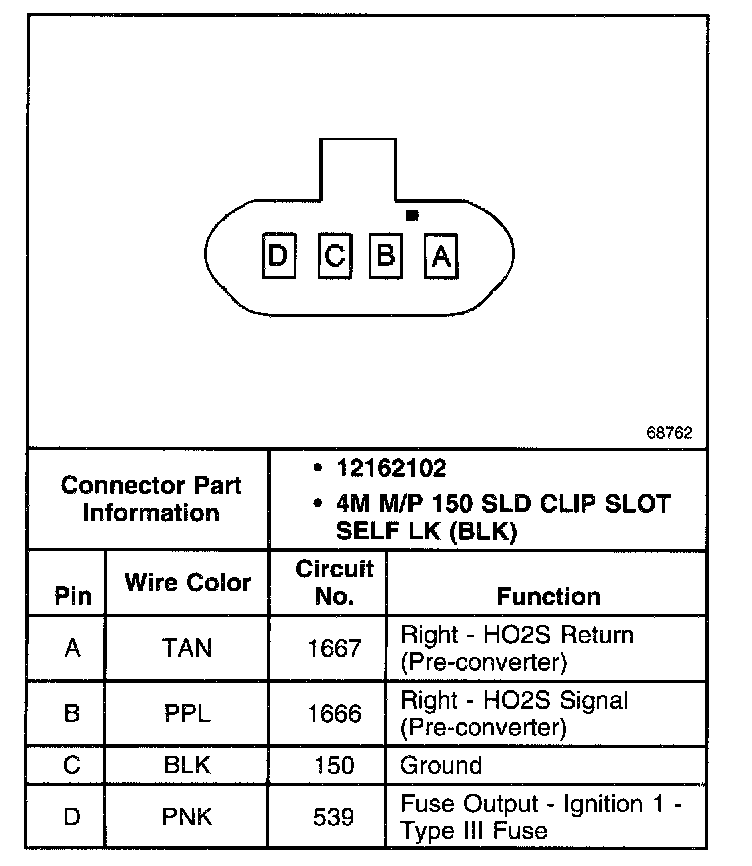

Bank 2 Sensor 1 (4L80-E)
Connector View:
