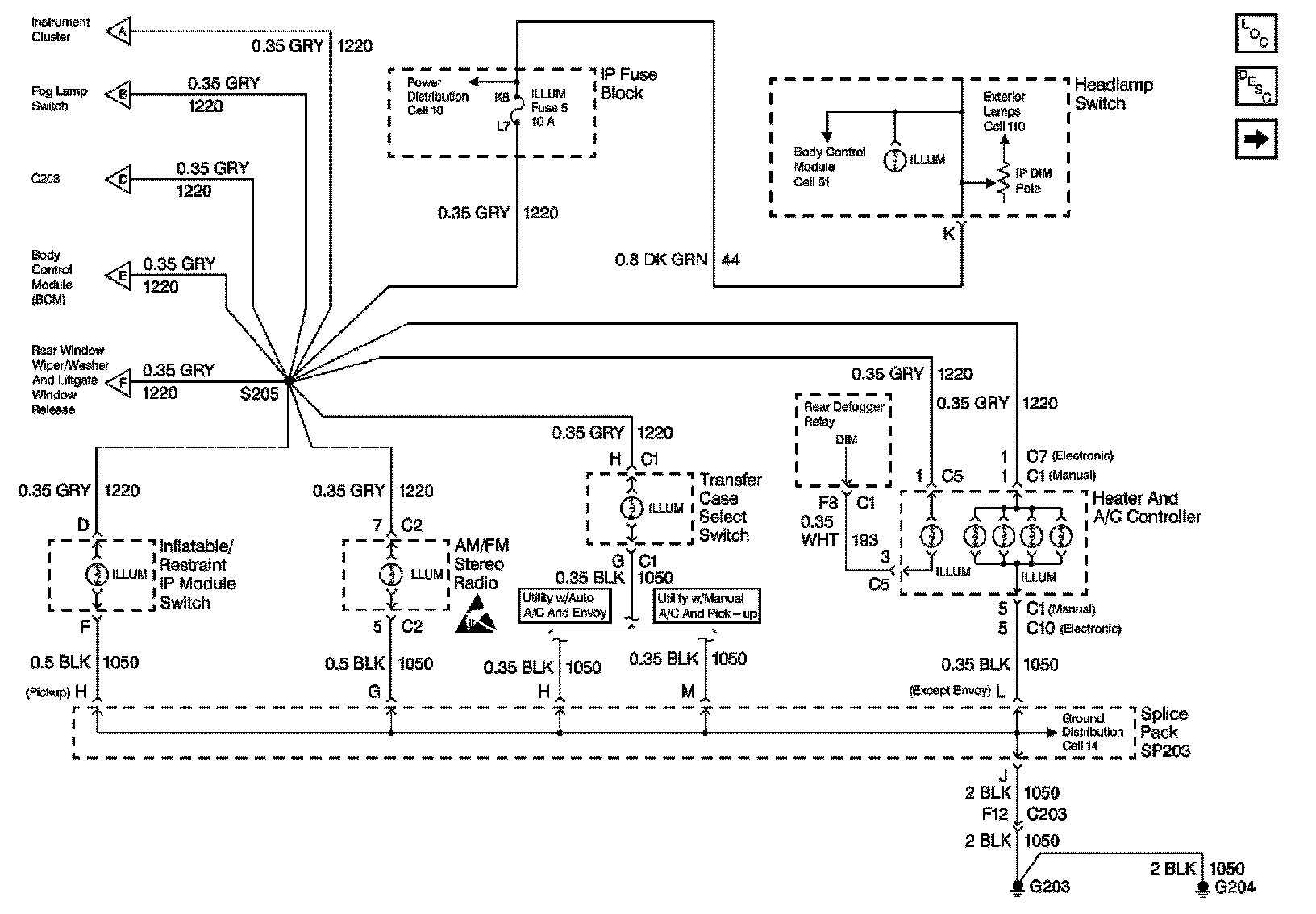

Interior Lights Dimming Schematics
Interior Lights Dimming Schematics
Interior Lights Dimming Schematics
Fuse Block
Instrument Cluster and Fog Lamp Switch
Headlamp Switch
