Trunk / Liftgate Relay
>>
Locations
>>
Liftglass Relay
Liftglass Relay

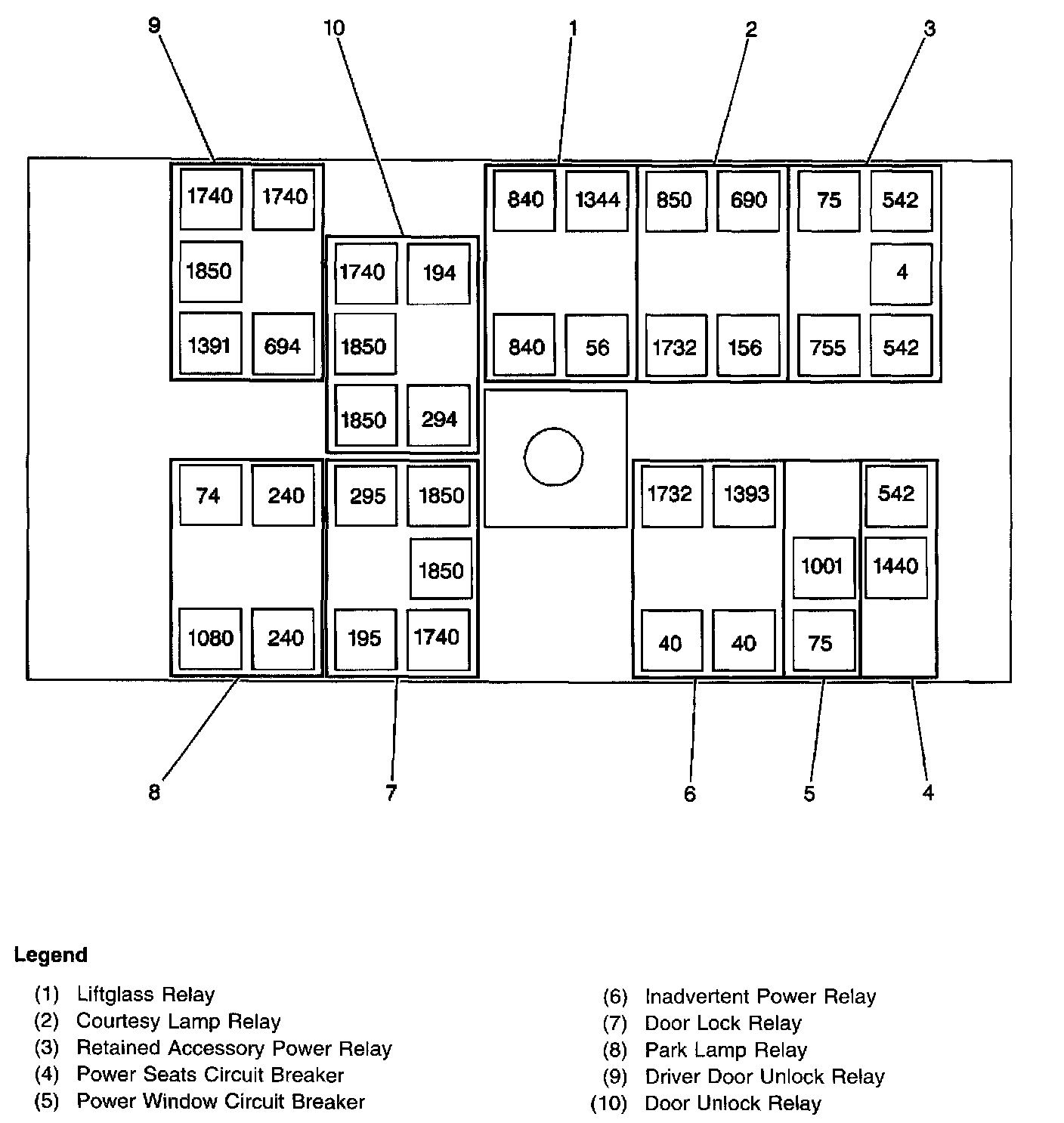

Body Relay Block Internal Location:
Body Relay Block Internal Location:
In the Body Bussed Electrical Center
