Home >> Chevy Truck >> 1998 >> K Tahoe 4WD V8-6.5L DSL Turbo VIN S >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - Transfer Case >> Four Wheel Drive Selector Switch >> Locations >> Automatic Transfer Case Select Switch

Automatic Transfer Case Select Switch

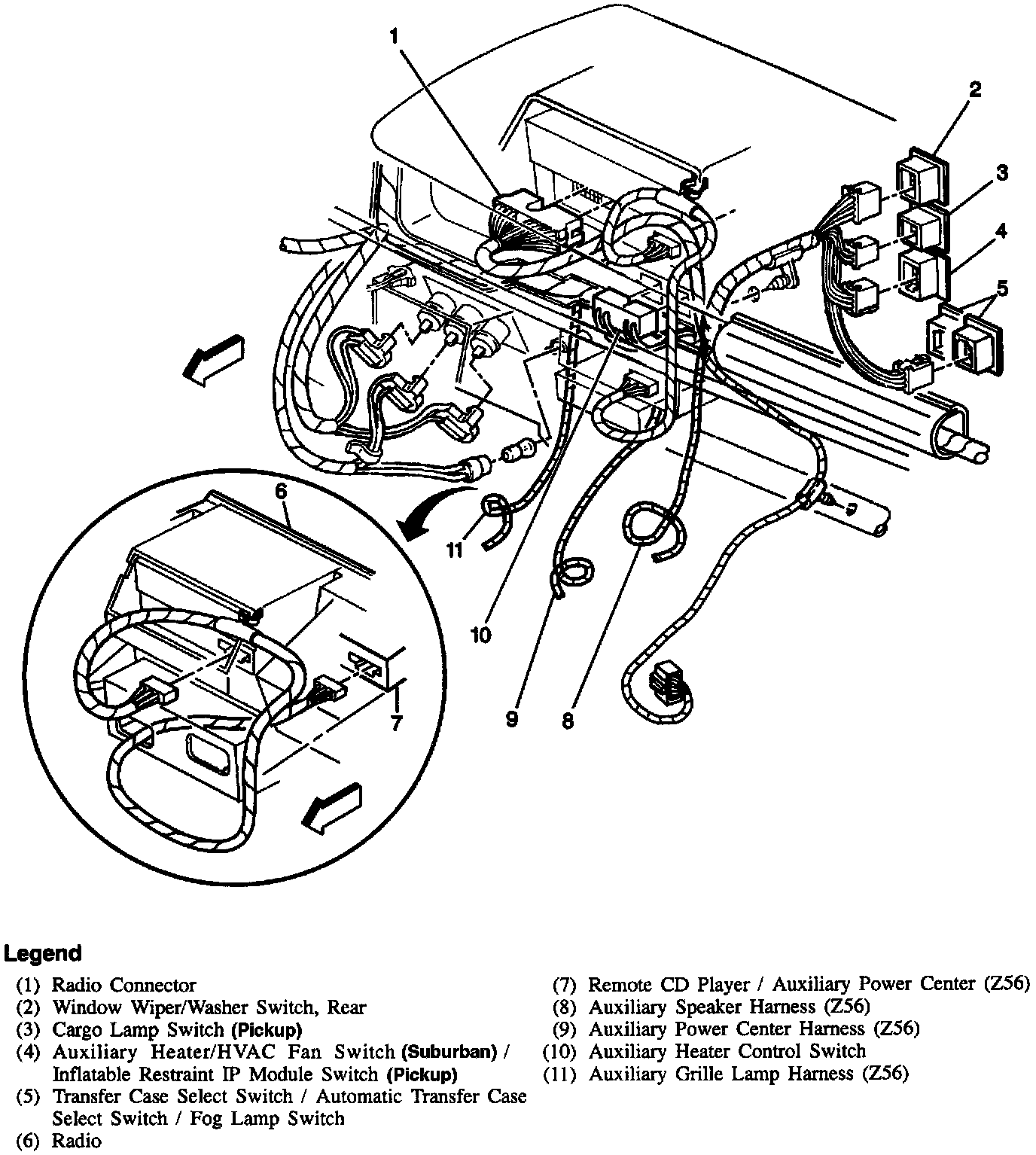

IP Wiring, Center (Rear View):
