Home >> Chevy Truck >> 1998 >> K Tahoe 4WD V8-6.5L DSL Turbo VIN S >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transfer Case >> NVG 246-NP8 (2-Speed Automatic) >> Active Transfer Case Select Switch Controls

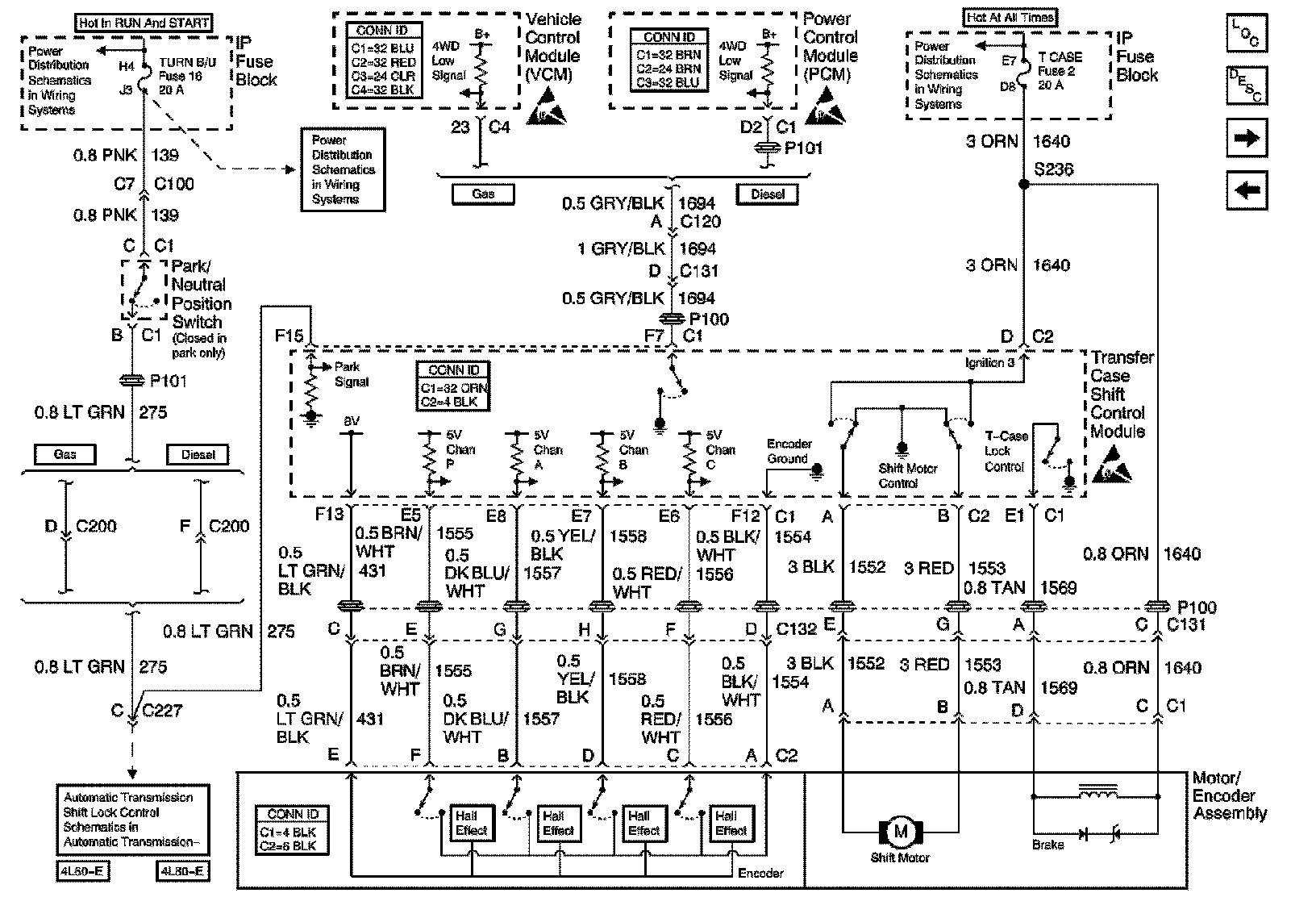

Active Transfer Case Select Switch Controls
