Home >> Chevy Truck >> 1998 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> 4L80-E Automatic Transmission >> Case Fluid Passages (Control Valve Body Side)

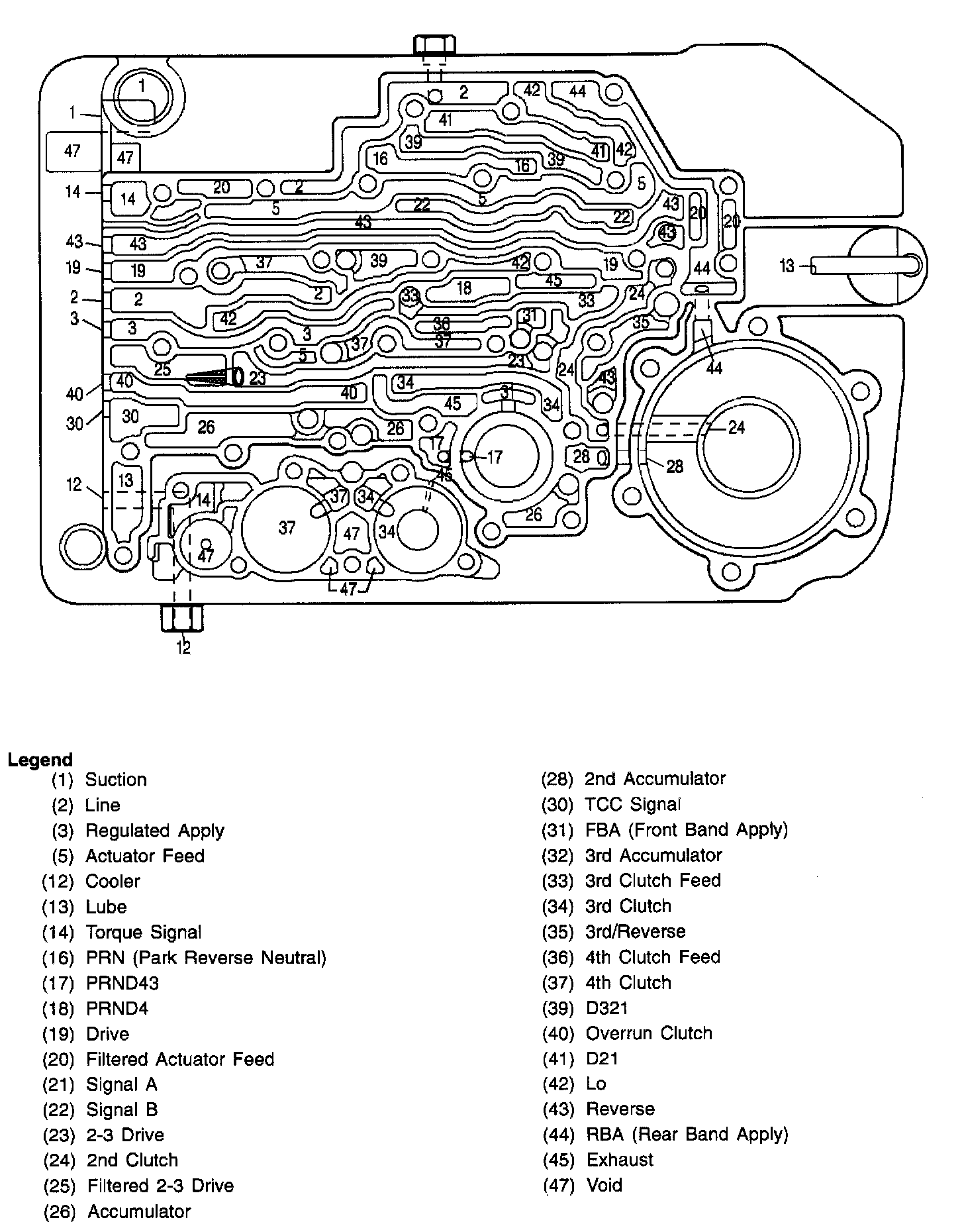

Case Fluid Passages (Control Valve Body Side)
