Temperature Valve Actuator Motor Doesn't Change Air Temperature

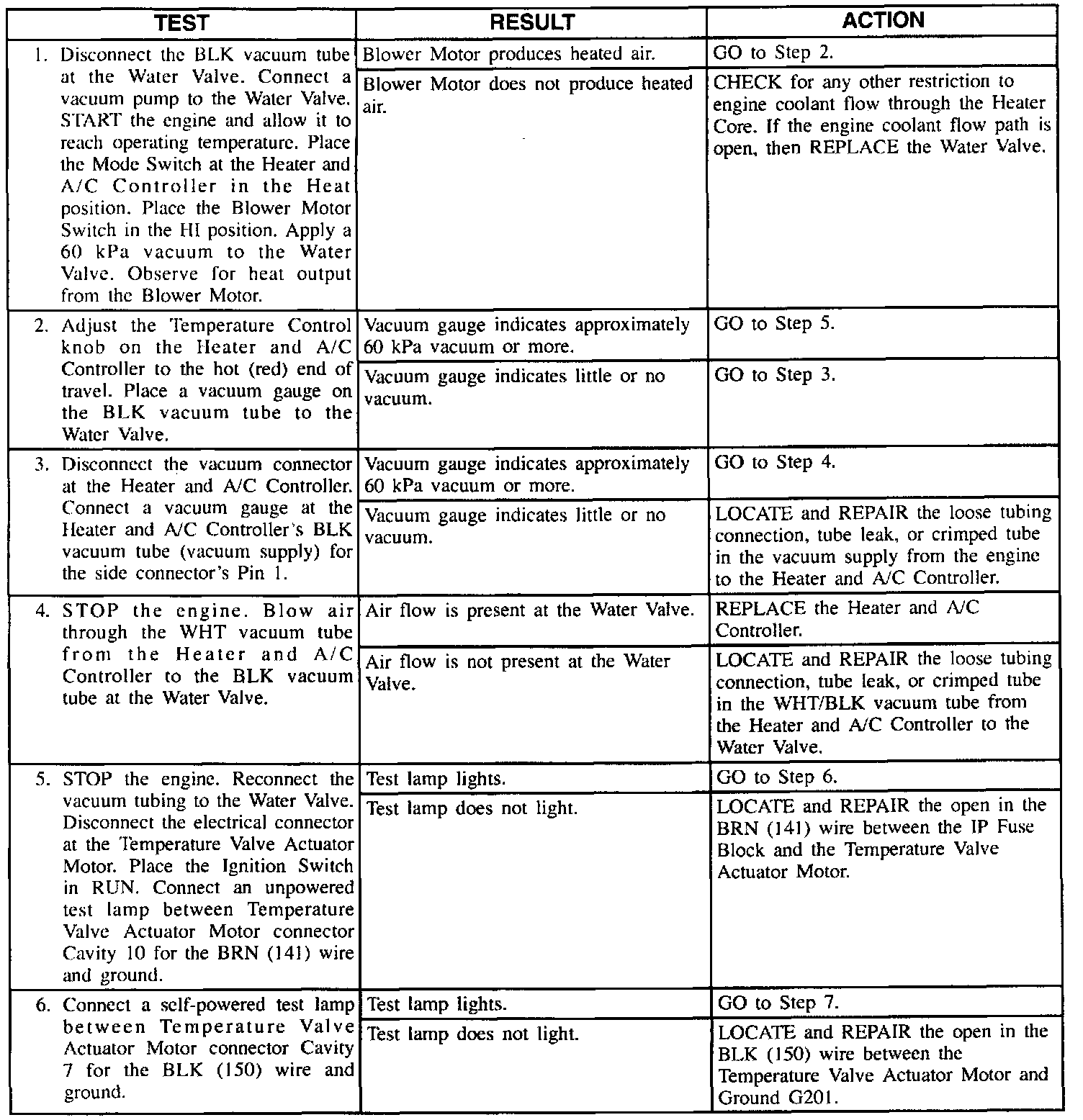

Temperature Valve Actuator Motor Does Not Change Air Temperature (Part 1 Of 2):



Temperature Valve Actuator Motor Does Not Change Air Temperature (Part 2 Of 2):
