Sliding Door Latch: Service and Repair

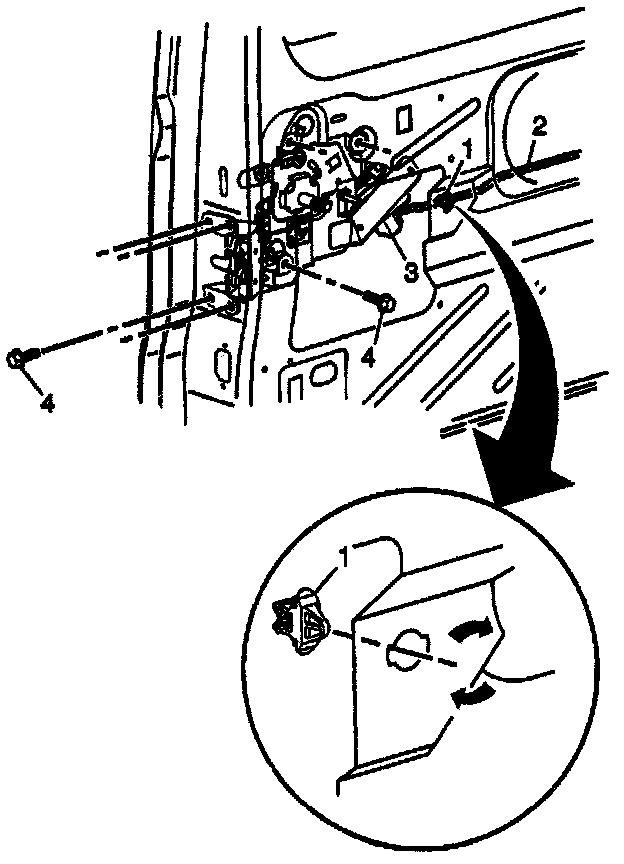

DOOR CONTROL ASSEMBLY

Remove or Disconnect










1. Door trim panel.
2. Lock rods.
3. Bolts retaining the control assembly.
4. Control assembly from the door;

Install or Connect










1. Control assembly to the door.
2. Bolts retaining the control assembly to the door.
^ Tighten Bolts to 10 Nm (S9 lb. in.)
3. Lock rods.
4. Door trim panel.
